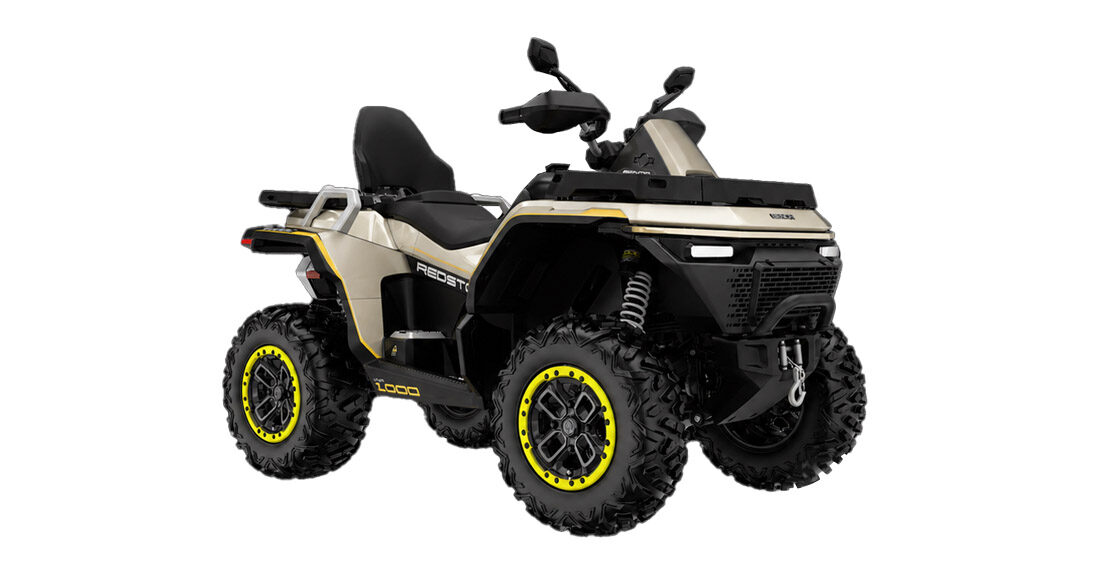

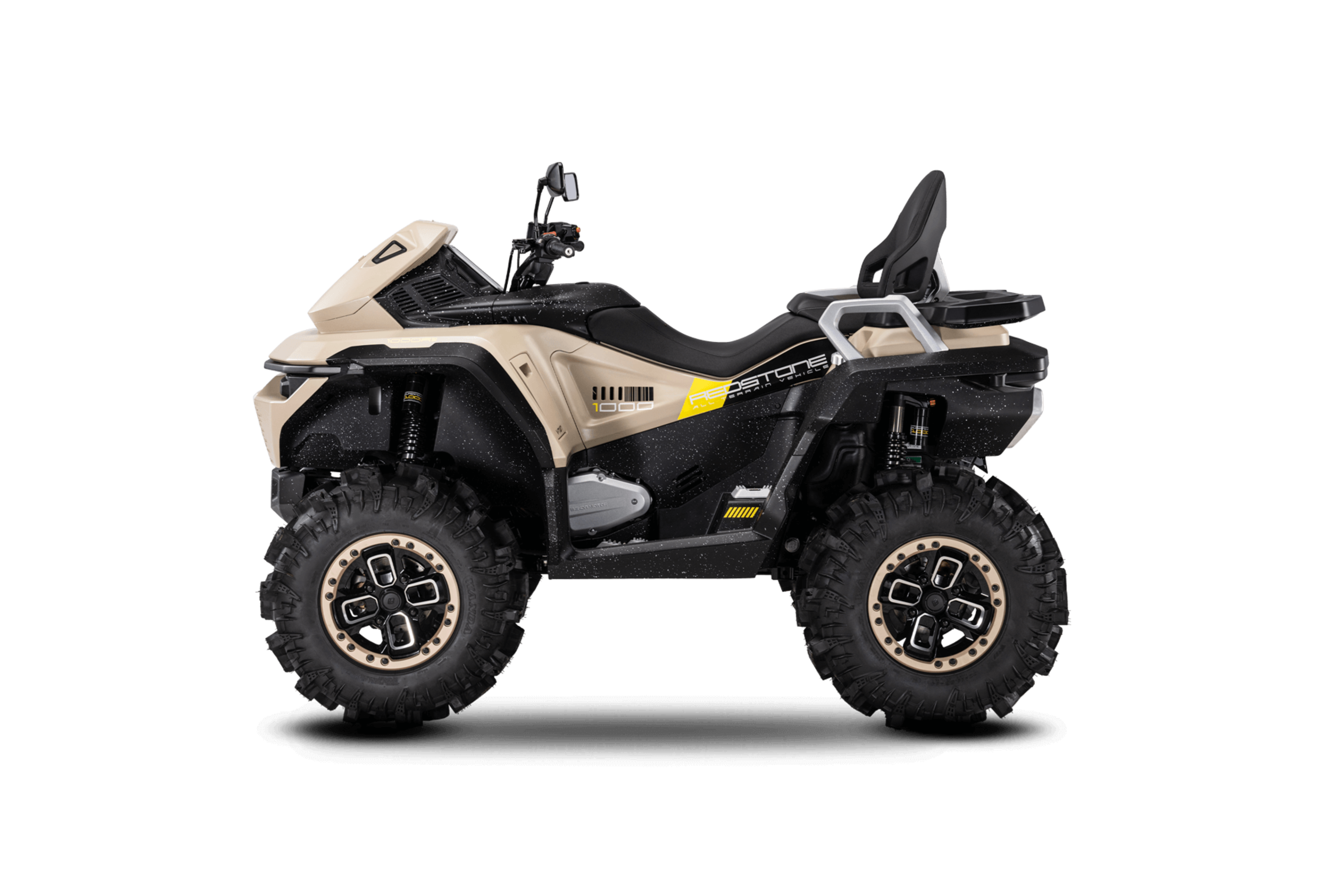

REDSTONE 1000 R2 DL
REDSTONE 1000 R2 DL
Interested in this model?
Reach out to us to book a viewing or ask for more details.
Engine
| Displacement (cm³) | 1000 |
|---|---|
| Engine type | 4-Stroke DOHC V-Twin Cylinder |
| Bore x stroke (mm) | 92×75 |
| Max.power (kW/rpm) | 75/7500 |
| Max.torque (N·m/rpm) | 98.3/6500 |
| Compression ratio | 11.5:1 |
| Fuel system* | EFI |
| Valve train | DOHC |
| Ignition | T.C.I. |
| Starter | Electric |
| Cooling system | Liquid-cooled |
| Lubrication system | Pressure splash lubrication |
Transmission
| Clutch type | Automatic |
|---|---|
| Gear shifting type | CVT, L/H/N/R/P |
| Transmission type | Shaft |
Chassis
| Frame type | Cr-Mo Frame |
|---|---|
| Handlebar type | Integrated steel tube |
| Front suspension* | Dual A-Arm With Sway Bar,Adjustable Gas Shock Absorber |
| Front suspension travel (mm) | 230 |
| Rear suspension* | Independent Torsional Trailing Arm,Adjustable Gas Shock Absorber |
| Rear suspension travel (mm) | 230 |
| Front brake* | Disc, 1-piston caliper |
| Front brake diameter (mm) | 220 |
| Rear brake* | Disc, 1-piston caliper |
| Rear brake diameter (mm) | 220 |
| Wheels | Aluminum alloy |
| Front tyre* | 27x9x14in. |
| Rear tyre* | 27x11x14in. |
| Rear swing arm type | Trailing Arm |
Dimentions & weights
| Overall length (mm) | 2370 |
|---|---|
| Overall width (mm) | 1280 |
| Overall height (mm) | 1520 |
| Wheelbase (mm) | 1500 |
| Ground clearance (mm) | 315 |
| Seat height (mm) | 980 |
| Fuel capacity (L) | 30 |
| Curb Weight (kg） | 585 |
| Max.loadage (kg) | 795 |
Active/Passive safety features
| ABS* | No |
|---|---|
| CBS | Yes |
| ABS off function | No |
| Cornering ABS | No |
| Tire pressure monitoring system (TPMS) | No |
| Traction control system | No |
| Steering damper | No |
Assistive/Control configurations
| Mode selection | Yes |
|---|---|
| Throttle configuration | Electronic throttle control (ETC) |
| Quick shift system (QSS) | No |
| Electronic suspension (ESC) | No |
| Cruise control system (CCS) | No |
| Hydraulic clutch | No |
| Stop-Start system (SSS) | No |
Multimedia & comfort features
| Dashboard type | TFT |
|---|---|
| Intelligent device connecting (Bluetooth/Wi-Fi, etc.) | Yes |
| Navigation screen mirroring | No |
| Gear indicator | Yes |
| USB charging port | Type-A，Type-C |
| Keyless start system | Yes |
| Heated grips | No |
| Heated seat | No |
| Handle switch with illumination | Yes |
| T-BOX | No |
| Windshield | No |
Lighting configuration
| Headlight | LED |
|---|---|
| Taillight | LED |
| Turn signal | LED |
| Hazard light | Yes |
| Automatic lighting system | Yes |
Other specifications
| Maximum speed (km/h) | 110 |
|---|---|
| Battery | 12V, 32Ah |
