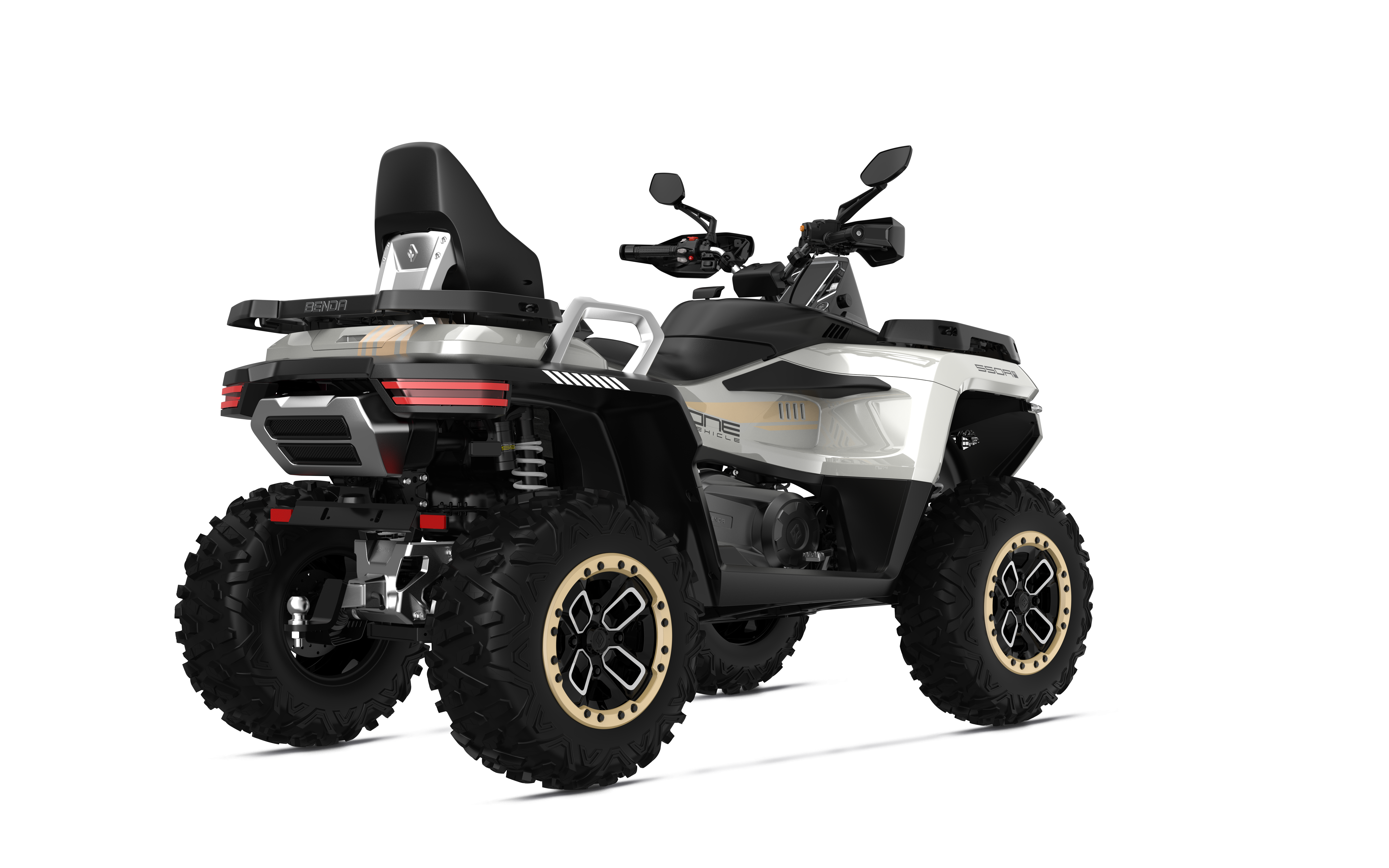

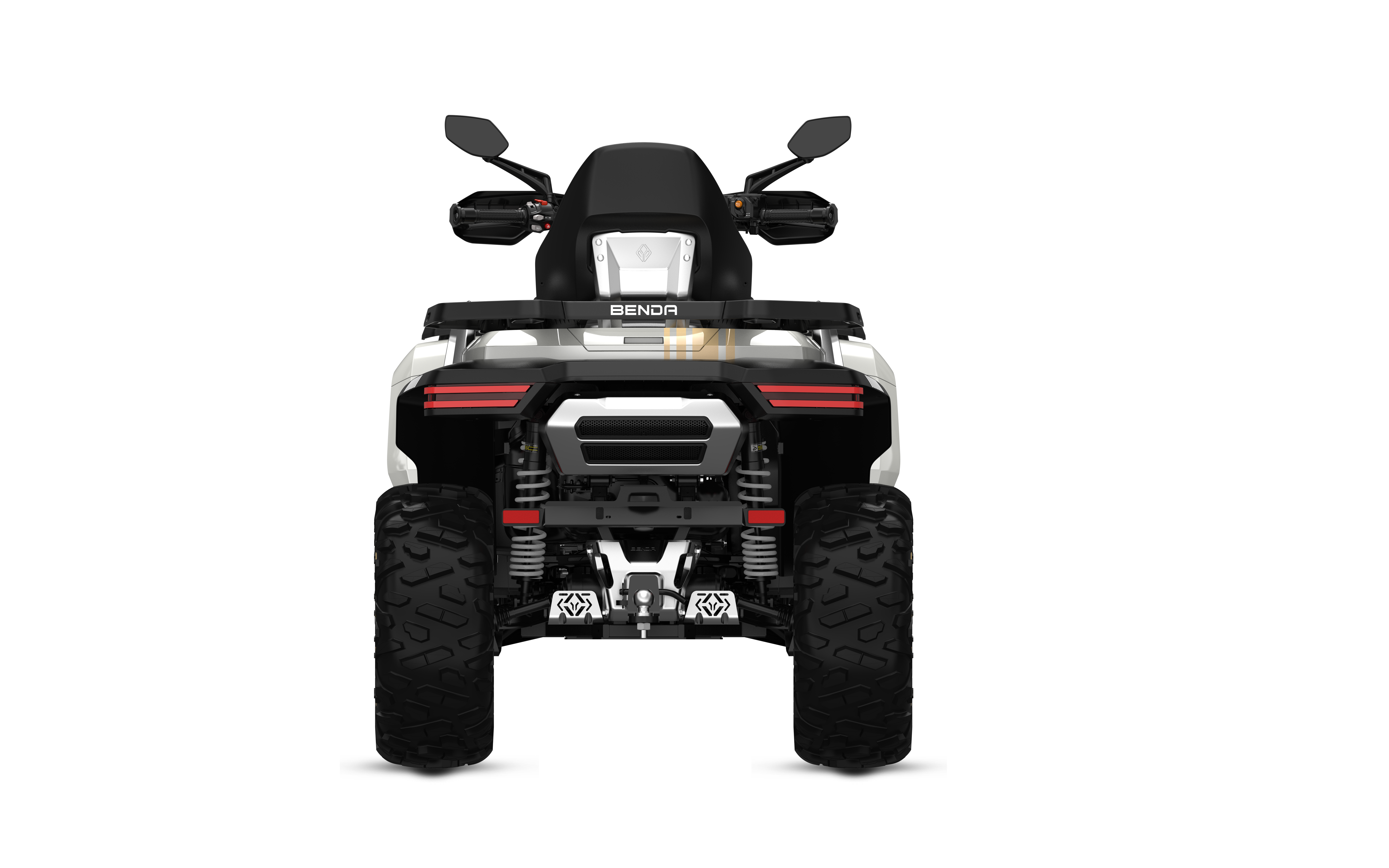

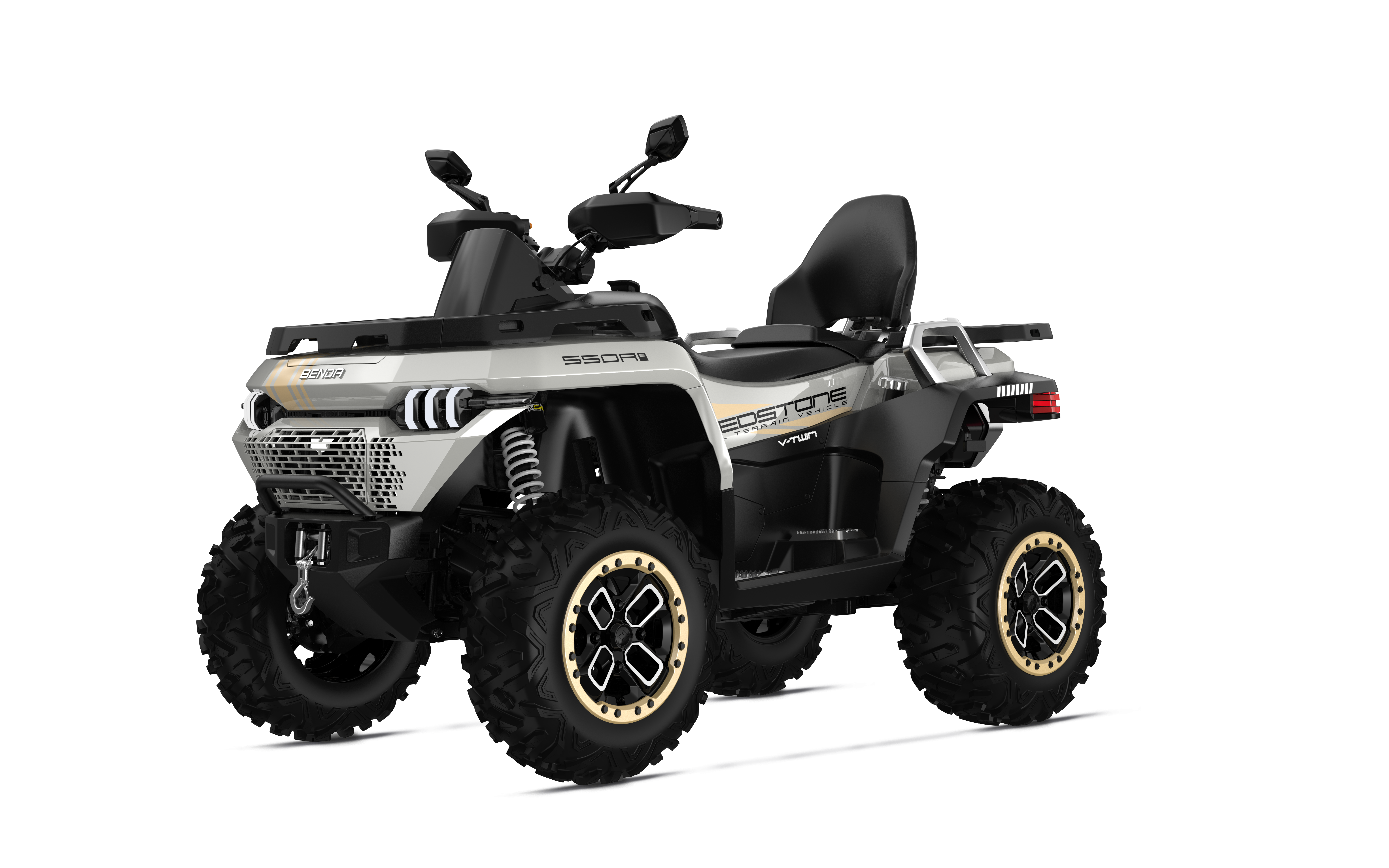

REDSTONE 550 R2 DL
REDSTONE 550 R2 DL
Interested in this model?
Reach out to us to book a viewing or ask for more details.
Engine
| Displacement (cm³) | 498.4 |
|---|---|
| Engine type | V-2-cylinder/4-stroke/8-valve |
| Bore x stroke (mm) | 72×61.2 |
| Max.power (kW/rpm) | 31.3/8000 |
| Max.torque (N·m/rpm) | 46/5500 |
| Compression ratio | 11.5:1 |
| Fuel system* | EFI |
| Valve train | DOHC |
| Ignition | T.C.I. |
| Starter | Electric |
| Cooling system | Liquid-cooled |
| Lubrication system | Pressure splash lubrication |
Transmission
| Clutch type | Automatic |
|---|---|
| Gear shifting type | CVT, L/H/N/R/P |
| Transmission type | Shaft |
Chassis
| Frame type | Cr-Mo Frame |
|---|---|
| Handlebar type | Integrated steel tube |
| Front suspension* | Dual A-Arm with sway bar, travel, Adjustable gas shock absorber |
| Front suspension travel (mm) | 153 |
| Rear suspension* | Independent Torsional Trailing Arm, Adjustable gas shock absorber |
| Rear suspension travel (mm) | 155 |
| Front brake* | Disc, 1-piston caliper |
| Front brake diameter (mm) | 220 |
| Rear brake* | Disc, 1-piston caliper |
| Rear brake diameter (mm) | 220 |
| Wheels | Aluminum alloy |
| Front tyre* | 225/65R14 |
| Rear tyre* | 275/55R14 |
| Rear swing arm type | Trailing Arm |
Dimentions & weights
| Overall length (mm) | 2365 |
|---|---|
| Overall width (mm) | 1245 |
| Overall height (mm) | 1450 |
| Wheelbase (mm) | 1500 |
| Ground clearance (mm) | 290 |
| Seat height (mm) | 950 |
| Fuel capacity (L) | 30 |
| Curb Weight (kg） | 581 |
| Max.loadage (kg) | 680 |
Active/Passive safety features
| ABS* | No |
|---|---|
| CBS | Yes |
| ABS off function | No |
| Cornering ABS | No |
| Tire pressure monitoring system (TPMS) | No |
| Traction control system | No |
| Steering damper | No |
Assistive/Control configurations
| Mode selection | Yes |
|---|---|
| Throttle configuration | Electronic throttle control (ETC) |
| Quick shift system (QSS) | No |
| Electronic suspension (ESC) | No |
| Cruise control system (CCS) | No |
| Hydraulic clutch | No |
| Stop-Start system (SSS) | No |
Multimedia & comfort features
| Dashboard type | TFT |
|---|---|
| Intelligent device connecting (Bluetooth/Wi-Fi, etc.) | Yes |
| Navigation screen mirroring | No |
| Gear indicator | Yes |
| USB charging port | Type-A，Type-C |
| Keyless start system | Yes |
| Heated grips | No |
| Heated seat | No |
| Handle switch with illumination | Yes |
| T-BOX | No |
| Windshield | No |
Lighting configuration
| Headlight | LED |
|---|---|
| Taillight | LED |
| Turn signal | LED |
| Hazard light | Yes |
| Automatic lighting system | No |
Other specifications
| Maximum speed (km/h) | 60 |
|---|---|
| Battery | 12V, 32Ah |
