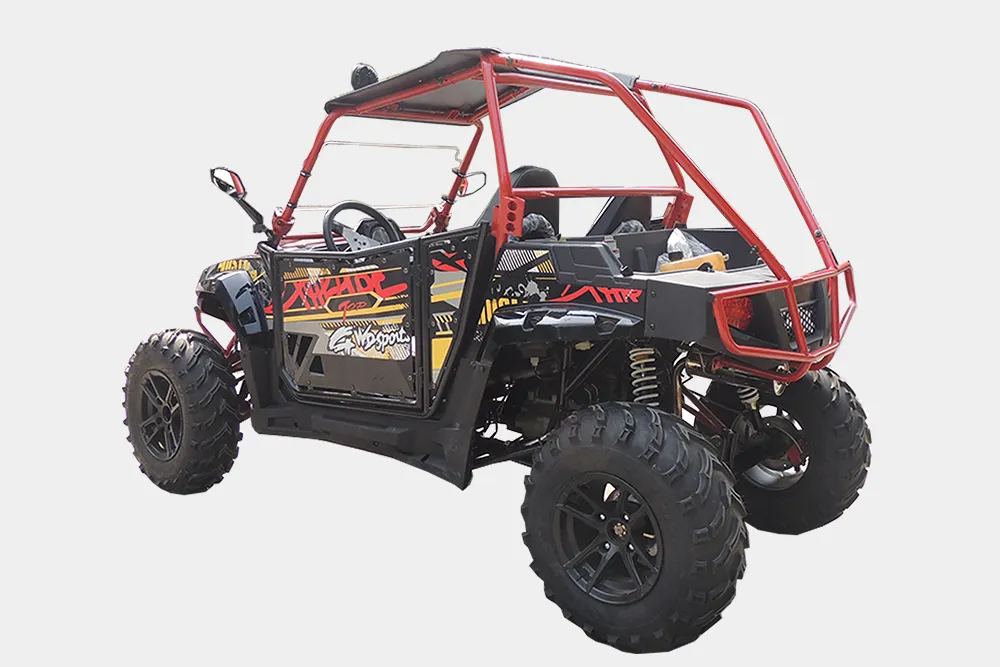

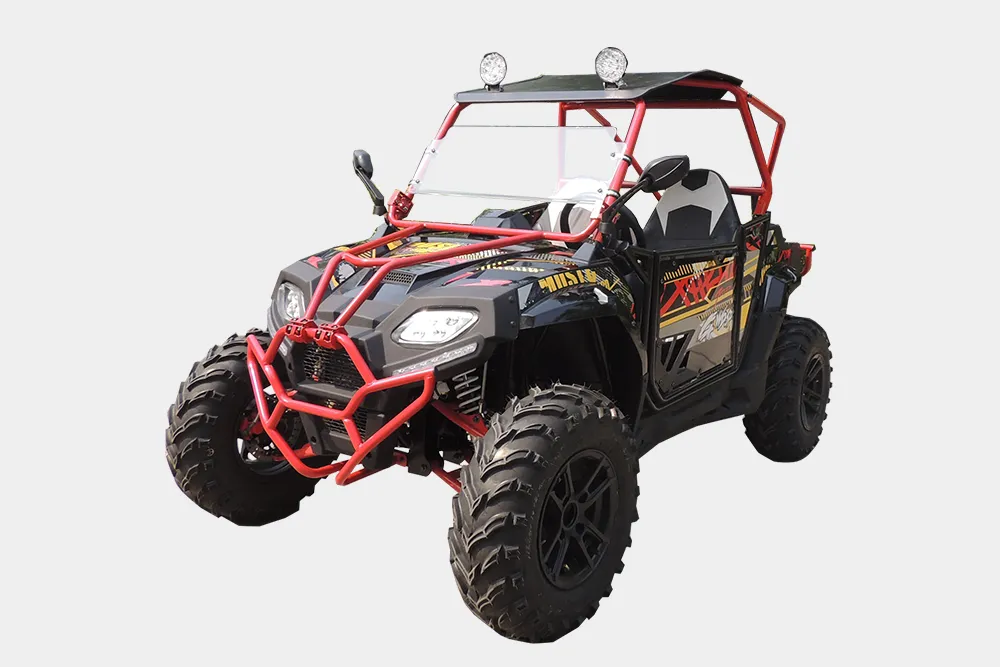

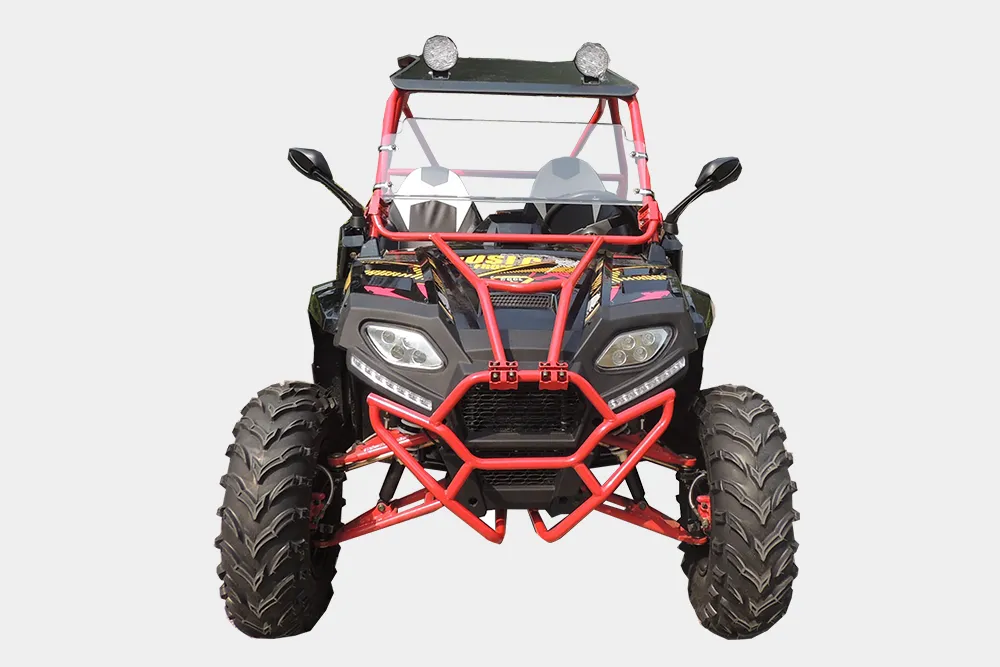

FANGPOWE FX 250 SPYDER
Fangpowe FX 250 Spyder
Interested in this model?
Reach out to us to book a viewing or ask for more details.
Engine and Performance
| Engine Type | 232cc, 4-stroke, single-cylinder, air/oil-cooled |
|---|---|
| Power Output | 10.5 kW (14.5 HP) @ 7500 rpm |
| Valve Configuration | OHV |
| Compression Ratio | 10.3:1 |
Fuel System
| Fuel Delivery | Fuel pump + vacuum diaphragm carburetor |
|---|---|
| Choke System | Automatic choke |
| Fuel Tank Capacity | 9.5 L (2.1 gal) |
| Fuel Meter | LED fuel meter |
Transmission and Drivetrain
| Driveline | 2×4 |
|---|---|
| Final Drive | Shaft-driven |
| Transmission Type | CVT |
| Gear Selection | R-N-D |
| Speed Display | LED speed meter |
Lighting and Electrical System
| Headlights | High and low beam |
|---|---|
| Driving Lights | LED |
| Brake Lights | LED with left/right signals |
| Start System | Electric start |
| Ignition System | D.C.D.I |
Suspension and Brakes
| Front Suspension | Double A-arm |
|---|---|
| Rear Suspension | Fang Power 4-Link® bar system |
| Front Brakes | Dual hydraulic disk brakes |
| Rear Brakes | Dual hydraulic disk brakes |
Tires and Rims
| Front Tires | 25×8-12 |
|---|---|
| Rear Tires | 25×10-12 |
| Front Rims | 12×6 alloy |
| Rear Rims | 12×8 alloy |
| Front Tread | 1150 mm (45.3 in) |
| Rear Tread | 1040 mm (41 in) |
Dimensions and Capacity
| Dry Weight | 340 kg (750 lbs) |
|---|---|
| Gross Weight | 348 kg (766 lbs) |
| Dimensions (L×W×H) | 2590×1350×1760 mm |
| Wheelbase | 1980 mm (78 in) |
| Ground Clearance | 260 mm (10.2 in) |
| Top Speed | 60 km/h |
