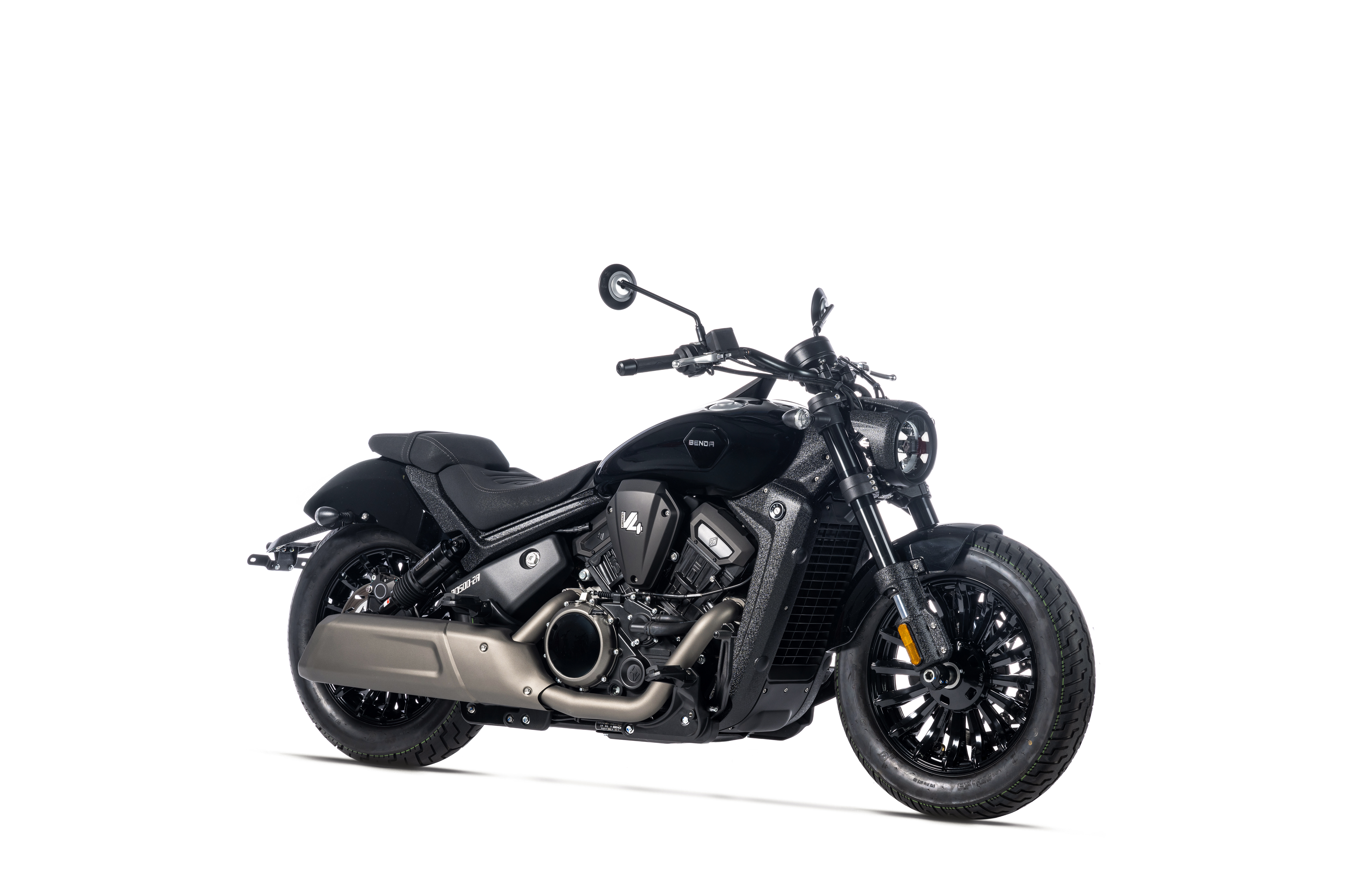

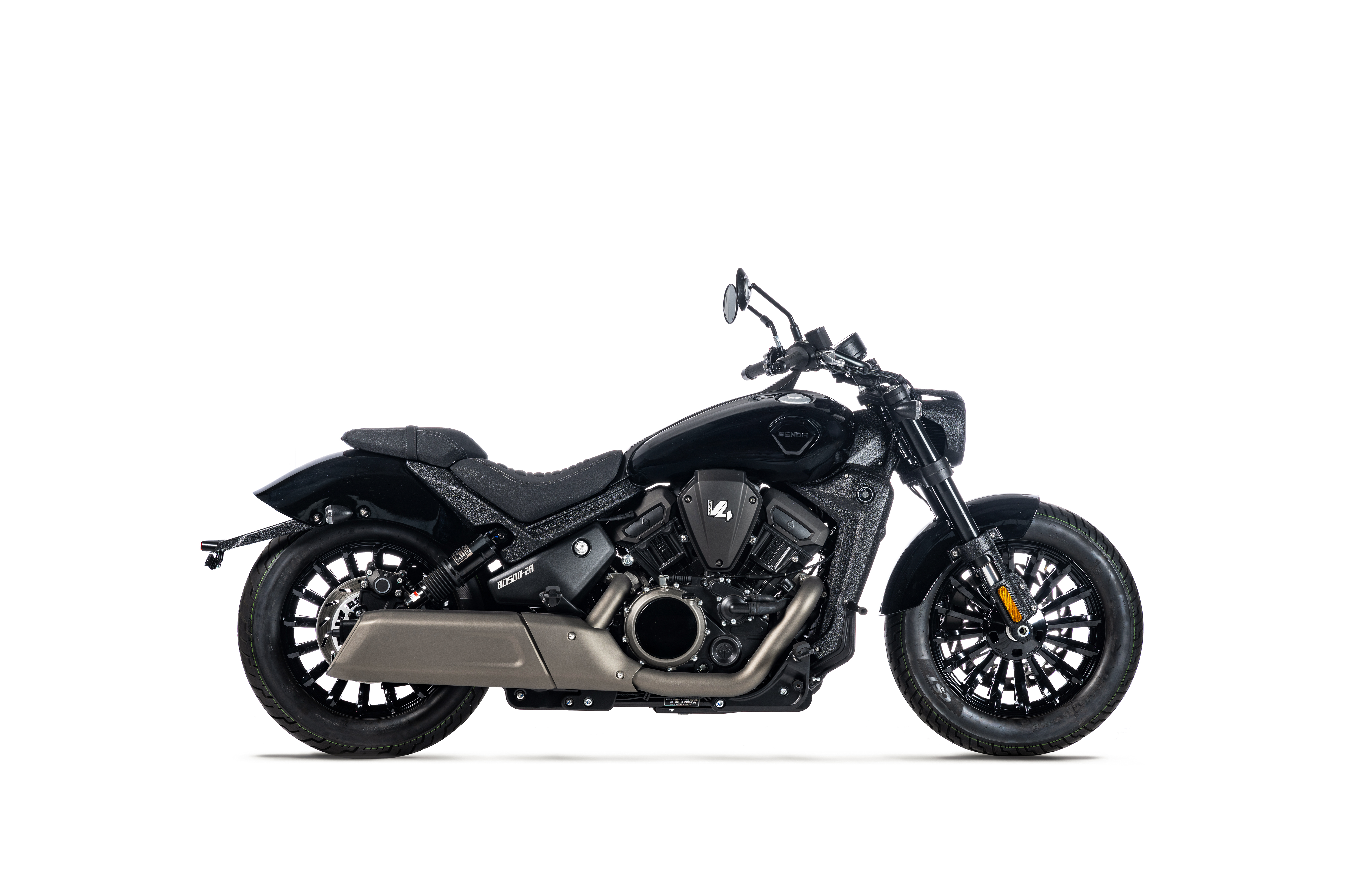

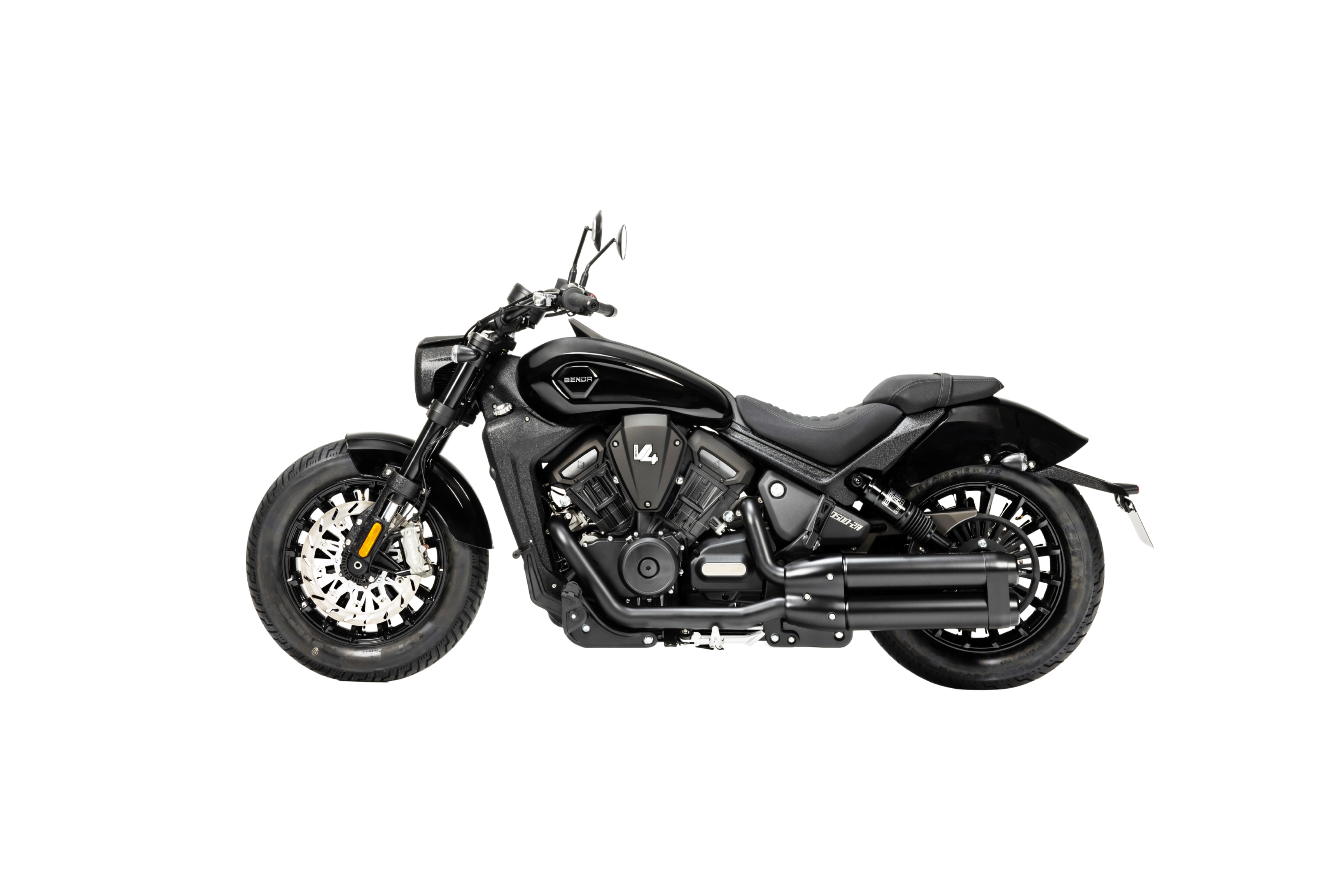

DARKFLAG 500
DARKFLAG 500
Interested in this model?
Reach out to us to book a viewing or ask for more details.
Engine
| Displacement (cm³) | 496.4 |
|---|---|
| Engine type | V-4-cylinder/4-stroke/16-valve |
| Bore x stroke (mm) | 53.5×55.2 |
| Max.power (kW/rpm) | 35.0/9500 |
| Max.torque (N·m/rpm) | 42.0/7300 |
| Compression ratio | 11.5:1 |
| Fuel system* | EFI |
| Valve train | SOHC |
| Ignition | T.C.I. |
| Starter | Electric |
| Cooling system | Liquid-cooled |
| Lubrication system | Pressure splash lubrication |
Transmission
| Clutch type | Slipper clutch |
|---|---|
| Gear shifting type | 6-speed |
| Transmission type | Belt |
Chassis
| Frame type | Double-cradle |
|---|---|
| Handlebar type | Integrated aluminum |
| Front suspension* | 41mm upside-down Telescopic forks, preload unadjustable |
| Front suspension travel (mm) | 95 |
| Rear suspension* | Dual shock-absorber, preload adjustable/ Airmatic |
| Rear suspension travel (mm) | 61.5 |
| Front brake* | Disc,4-piston caliper, J.Juan |
| Front brake diameter (mm) | 320 |
| Rear brake* | Disc, 2-piston caliper |
| Rear brake diameter (mm) | 260 |
| Wheels | Aluminum alloy |
| Front tyre* | 130/90-16 |
| Rear tyre* | 150/80-16 |
| Rear swing arm type | Double-sided steel |
Dimentions & weights
| Overall length (mm) | 2330 |
|---|---|
| Overall width (mm) | 890 |
| Overall height (mm) | 1100 |
| Wheelbase (mm) | 1586 |
| Ground clearance (mm) | 134 |
| Seat height (mm) | 700 |
| Fuel capacity (L) | 16 |
| Curb Weight (kg） | 260 |
| Max.loadage (kg) | 180 |
Active/Passive safety features
| ABS* | Dual-Channel |
|---|---|
| CBS | No |
| ABS off function | No |
| Cornering ABS | No |
| Tire pressure monitoring system (TPMS) | No |
| Traction control system | Yes |
| Steering damper | No |
Assistive/Control configurations
| Mode selection | No |
|---|---|
| Throttle configuration | Electronic throttle control (ETC) |
| Quick shift system (QSS) | No |
| Electronic suspension (ESC) | Options |
| Cruise control system (CCS) | Yes |
| Hydraulic clutch | No |
| Stop-Start system (SSS) | No |
Multimedia & comfort features
| Dashboard type | Combination |
|---|---|
| Intelligent device connecting (Bluetooth/Wi-Fi, etc.) | No |
| Navigation screen mirroring | No |
| Gear indicator | Yes |
| USB charging port | Type-A，Type-C |
| Keyless start system | No |
| Heated grips | No |
| Heated seat | No |
| Handle switch with illumination | No |
| T-BOX | No |
| Windshield | No |
Lighting configuration
| Headlight | LED |
|---|---|
| Taillight | LED |
| Turn signal | LED |
| Hazard light | Yes |
| Automatic lighting system | No |
Other specifications
| Maximum speed (km/h) | 129 |
|---|---|
| Battery | 12V, 11.2Ah |
Specifications
| Category | Motorcycle |
|---|
