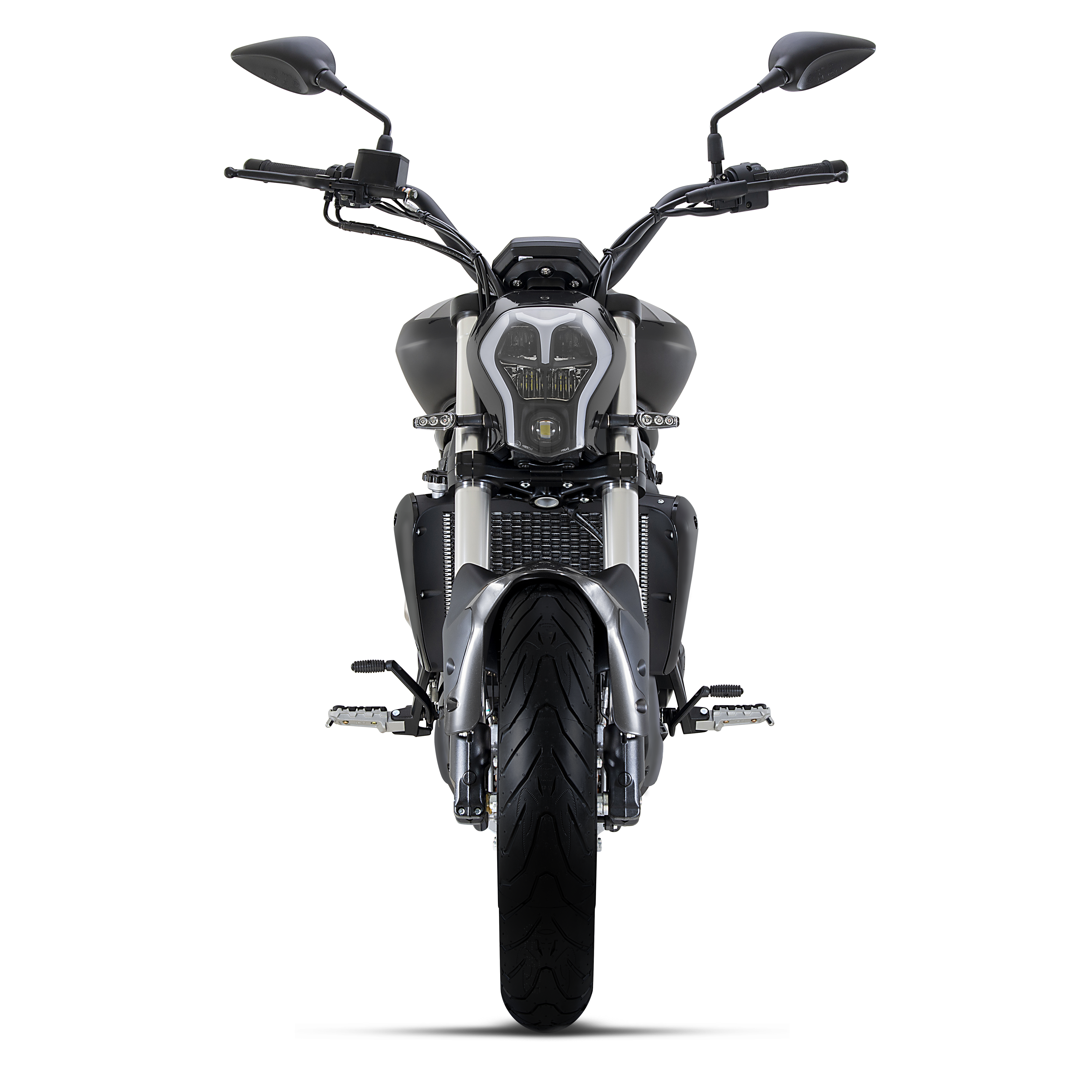

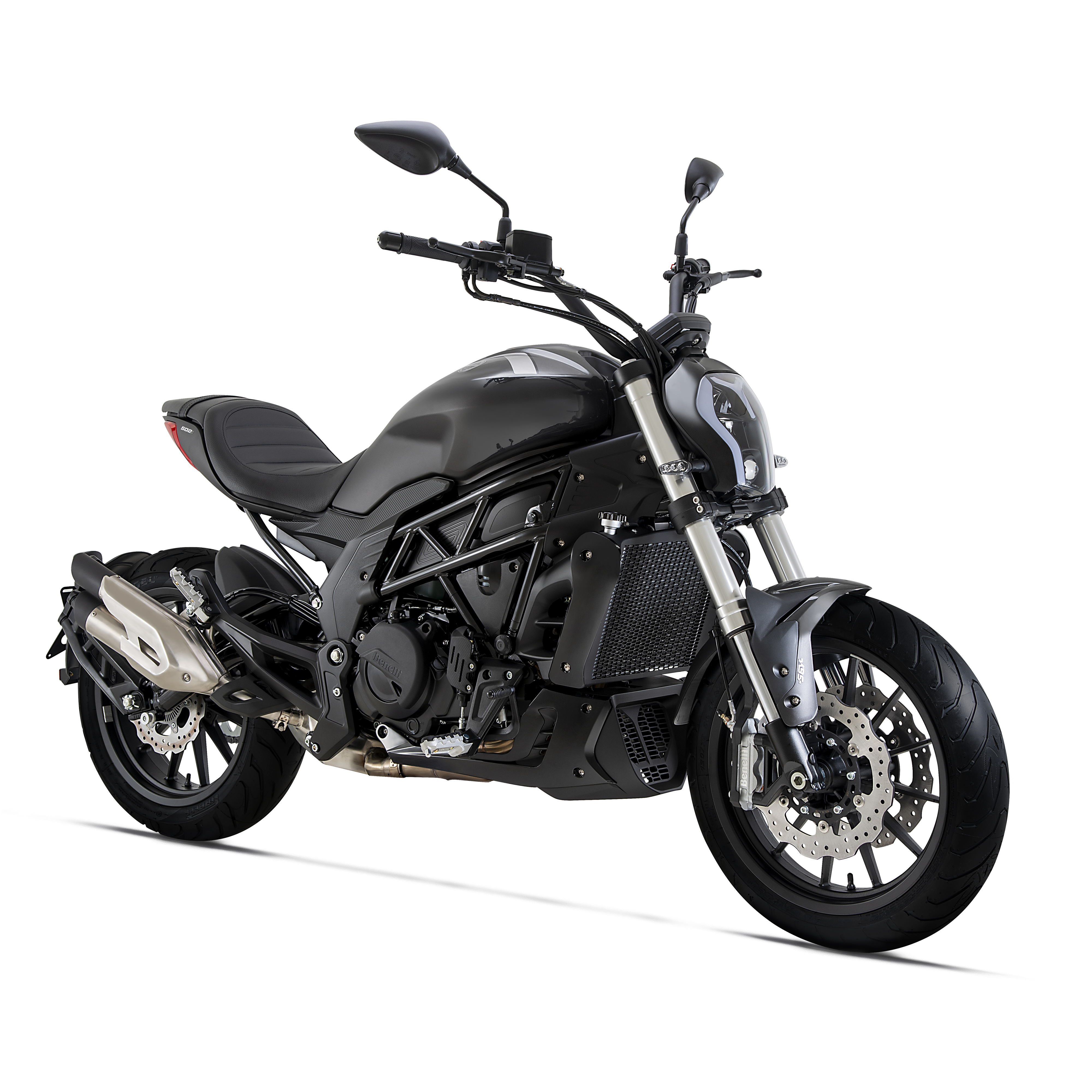

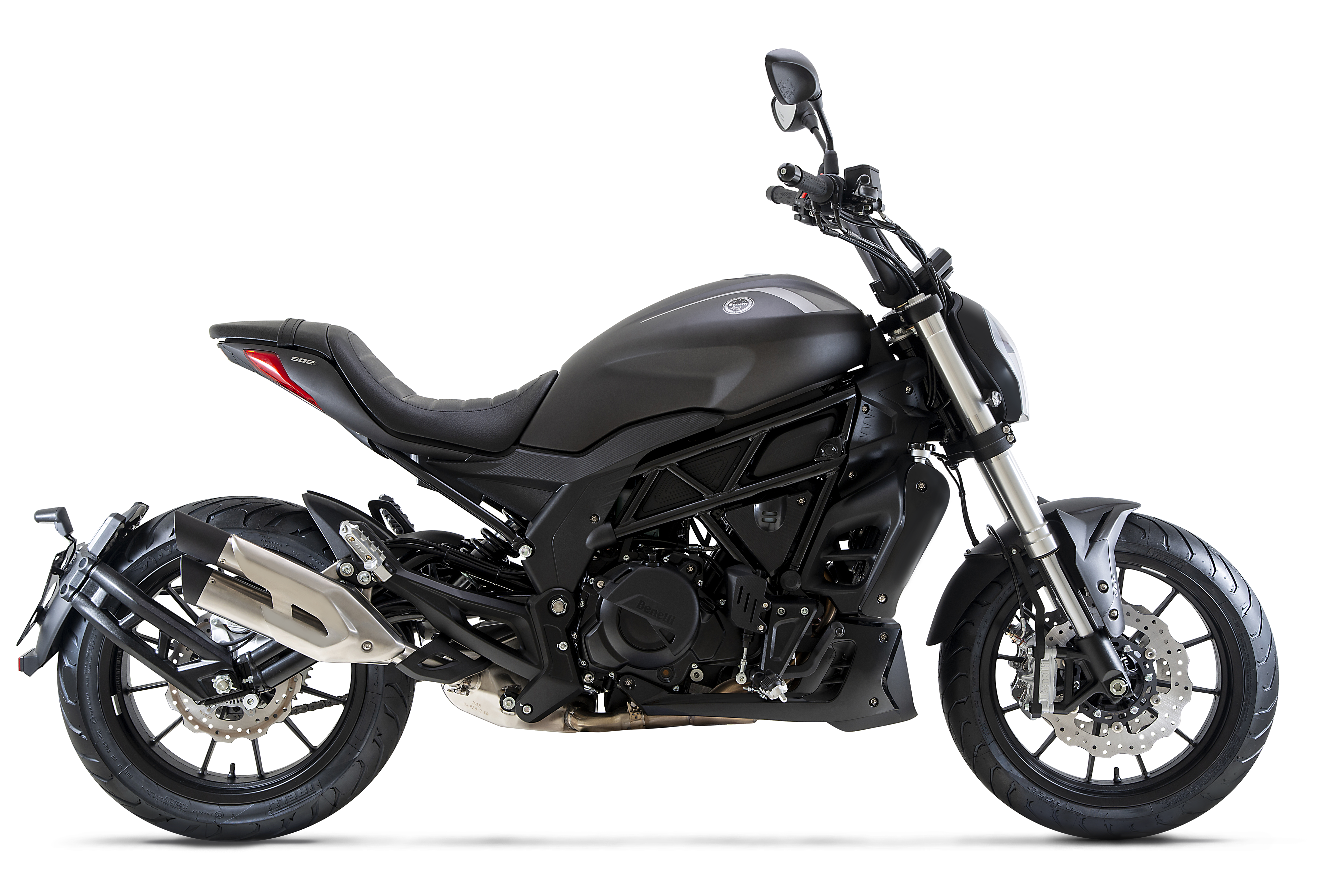

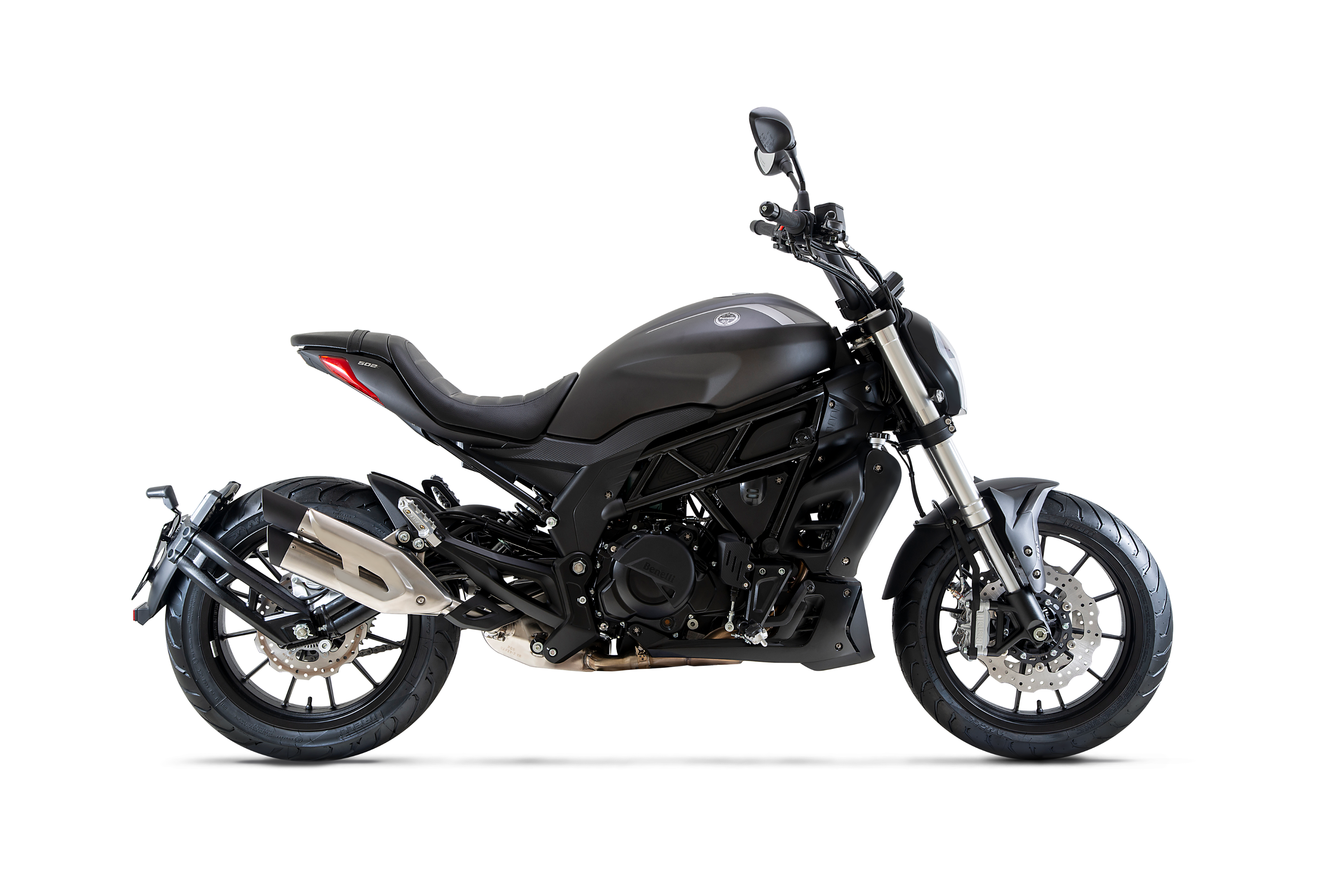

502C CRUISER
502C CRUISER
Interested in this model?
Reach out to us to book a viewing or ask for more details.
Engine
| Displacement (cm³) | 500 |
|---|---|
| Engine type | 2-cylinder/4-stroke/8-valve |
| Bore x stroke (mm) | 69×66.8 |
| Max.power (kW/rpm) | 35/8500 |
| Max.torque (N·m/rpm) | 46/6000 |
| Compression ratio | 11.5:1 |
| Fuel system* | EFI, Bosch |
| Valve train | DOHC |
| Ignition | T.C.I. |
| Starter | Electric |
| Cooling system | Liquid-cooled |
| Lubrication system | Pressure splash lubrication |
Transmission
| Clutch type | Slipper Clutch |
|---|---|
| Gear shifting type | Chain |
| Slipper clutch | Yes |
Chassis
| Frame type | Steel trellis frame |
|---|---|
| Handlebar type | Integrated aluminum |
| Front suspension* | 41mm upside-down telescopic forks, unadjustable |
| Front suspension travel (mm) | 135 |
| Rear suspension* | Mono-shock-absorber, preload adjustable |
| Rear suspension travel (mm) | 50 |
| Front brake* | Dual floating discs, 4-piston caliper |
| Front brake diameter (mm) | 280 |
| Rear brake* | Disc, 2-piston caliper |
| Rear brake diameter (mm) | 240 |
| Wheels | Aluminum alloy |
| Front tyre* | 120/70ZR17, Pirelli |
| Rear tyre* | 160/60ZR17, Pirelli |
| Rear swing arm type | Double-sided steel |
Dimentions & weights
| Overall length (mm) | 2240 |
|---|---|
| Overall width (mm) | 950 |
| Overall height (mm) | 1150 |
| Wheelbase (mm) | 1580 |
| Ground clearance (mm) | 210 |
| Seat height (mm) | 760 |
| Fuel capacity (L) | 21.5 |
| Curb Weight (kg） | 220 |
| Max.loadage (kg) | 187 |
Active/Passive safety features
| ABS* | Yes, Bosch |
|---|---|
| CBS | No |
| ABS off function | No |
| Cornering anti-lock braking system (ABS PRO/ABS EVO） | No |
| Tire pressure monitoring system (TPMS) | No |
| Traction control system | No |
| Steering damper | No |
Assistive/Control configurations
| Mode selection | No |
|---|---|
| Throttle configuration | Dual cable throttle control |
| Quick shift system (QSS) | No |
| Electronic suspension (ESC) | No |
| Cruise control system (CCS) | No |
| Hydraulic clutch | No |
| Stop-Start system (SSS) | No |
Multimedia & comfort features
| Dashboard type | LCD |
|---|---|
| Intelligent device connecting (Bluetooth/Wi-Fi, etc.) | No |
| Navigation screen mirroring | No |
| Gear indicator | Yes |
| USB charging port | No |
| Keyless start system | No |
| Heated grips | No |
| Heated seat | No |
| Handle switch with illumination | No |
| T-BOX | No |
| Windshield | No |
Lighting configuration
| Headlight | LED |
|---|---|
| Taillight | LED |
| Turn signal | LED |
| Hazard light | Yes |
| Automatic headlight | No |
Other specifications
| Maximum speed (km/h) | 160 |
|---|---|
| Battery | 12V, 8Ah |
