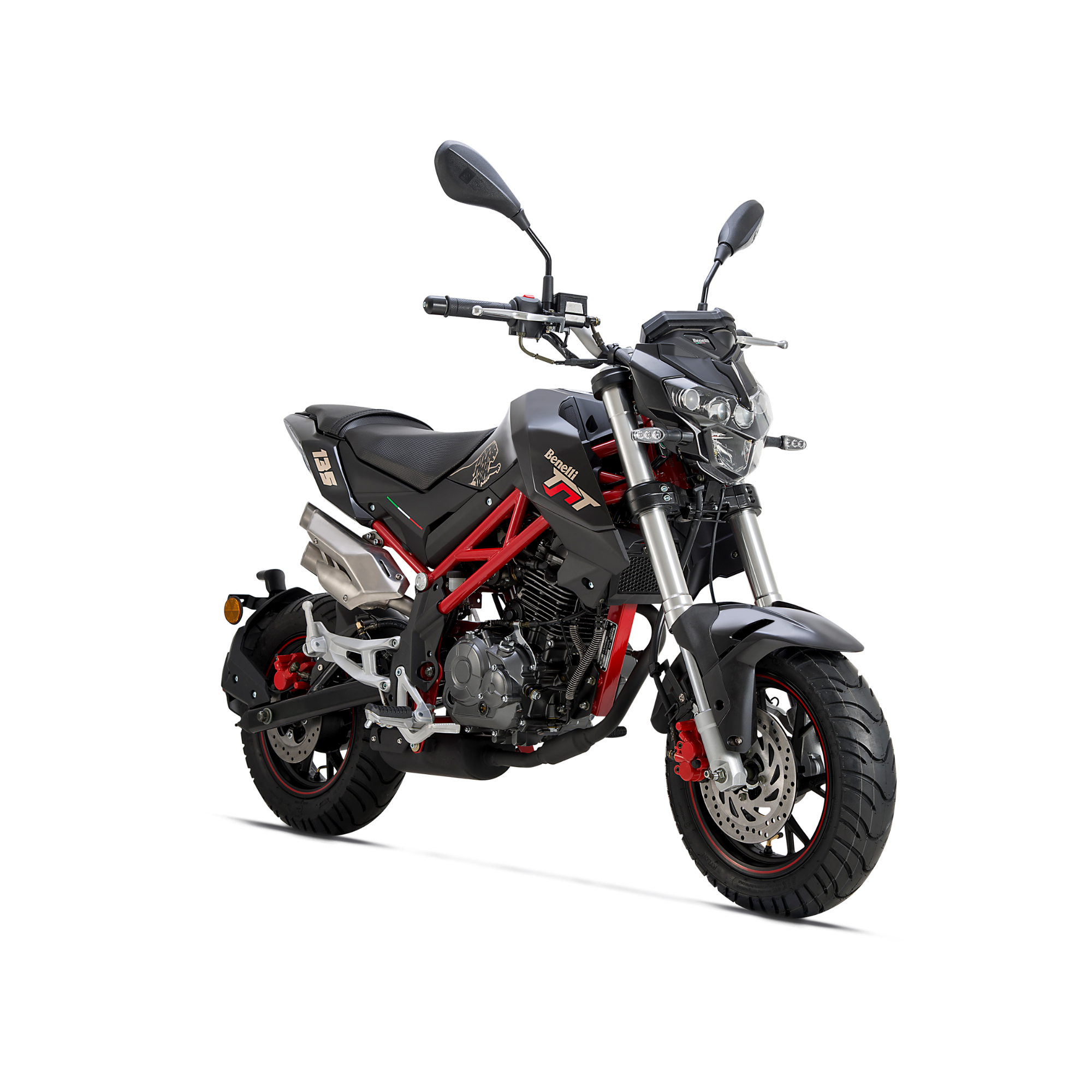

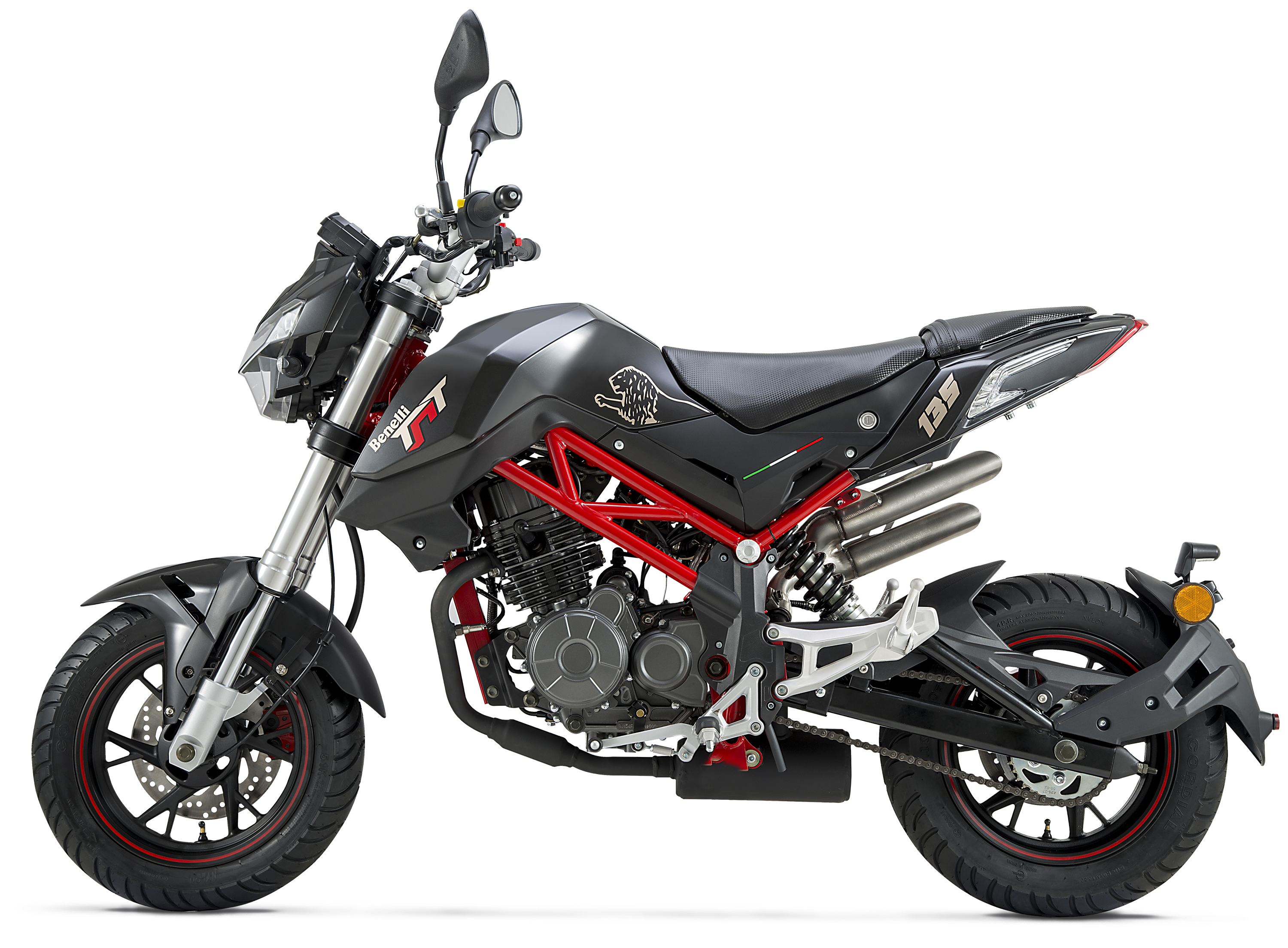

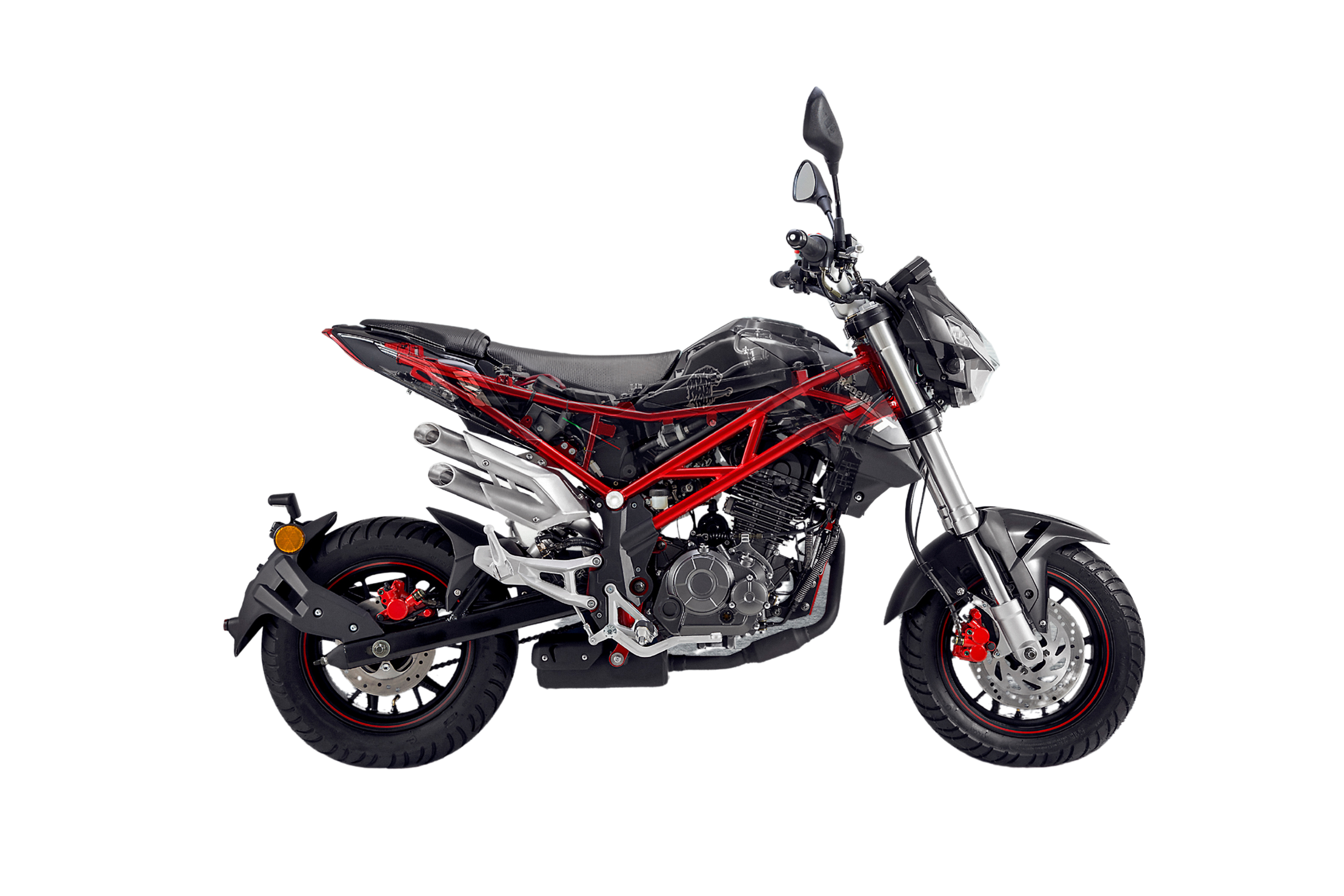

TNT 135
TNT 135
Interested in this model?
Reach out to us to book a viewing or ask for more details.
Engine
| Displacement (cm³) | 135 |
|---|---|
| Engine type | 1-cylinder/4-stroke/4-valve |
| Bore x stroke (mm) | 54.0×58.8 |
| Max.power (kW/rpm) | 9.3/9000 |
| Max.torque (N·m/rpm) | 10.8/7000 |
| Compression ratio | 9.8:1 |
| Fuel system* | EFI |
| Valve train | SOHC |
| Ignition | T.C.I. |
| Starter | Electric |
| Cooling system | Air-cooled |
| Lubrication system | Pressure splash lubrication |
Transmission
| Clutch type | Wet multi-plate |
|---|---|
| Gear shifting type | Chain |
| Slipper clutch | No |
Chassis
| Frame type | Steel trellis frame |
|---|---|
| Handlebar type | Integrated aluminum |
| Front suspension* | 30mm upside-down telescopic forks, unadjustable |
| Front suspension travel (mm) | 120 |
| Rear suspension* | Mono-shock-absorber, preload adjustable |
| Rear suspension travel (mm) | 28 |
| Front brake* | Disc, 2-piston caliper |
| Front brake diameter (mm) | 220 |
| Rear brake* | Disc, 1-piston caliper |
| Rear brake diameter (mm) | 190 |
| Wheels | Aluminum alloy |
| Front tyre* | 120/70-12 |
| Rear tyre* | 130/70-12 |
| Rear swing arm type | Double-sided steel |
Dimentions & weights
| Overall length (mm) | 1770 |
|---|---|
| Overall width (mm) | 760 |
| Overall height (mm) | 1025 |
| Wheelbase (mm) | 1215 |
| Ground clearance (mm) | 160 |
| Seat height (mm) | 780 |
| Fuel capacity (L) | 7.2 |
| Curb Weight (kg） | 116 |
| Max.loadage (kg) | 150 |
Active/Passive safety features
| ABS* | No |
|---|---|
| CBS | No |
| ABS off function | No |
| Cornering anti-lock braking system (ABS PRO/ABS EVO） | No |
| Tire pressure monitoring system (TPMS) | No |
| Traction control system | No |
| Steering damper | No |
Assistive/Control configurations
| Mode selection | No |
|---|---|
| Throttle configuration | Single cable throttle control |
| Quick shift system (QSS) | No |
| Electronic suspension (ESC) | No |
| Cruise control system (CCS) | No |
| Hydraulic clutch | No |
| Stop-Start system (SSS) | No |
Multimedia & comfort features
| Dashboard type | Combination |
|---|---|
| Intelligent device connecting (Bluetooth/Wi-Fi, etc.) | No |
| Navigation screen mirroring | No |
| Gear indicator | No |
| USB charging port | No |
| Keyless start system | No |
| Heated grips | No |
| Heated seat | No |
| Handle switch with illumination | No |
| T-BOX | No |
| Windshield | No |
Lighting configuration
| Headlight | LED |
|---|---|
| Taillight | LED |
| Turn signal | LED |
| Hazard light | Yes |
| Automatic headlight | No |
Other specifications
| Maximum speed (km/h) | 95 |
|---|---|
| Battery | 12V, 6Ah |
