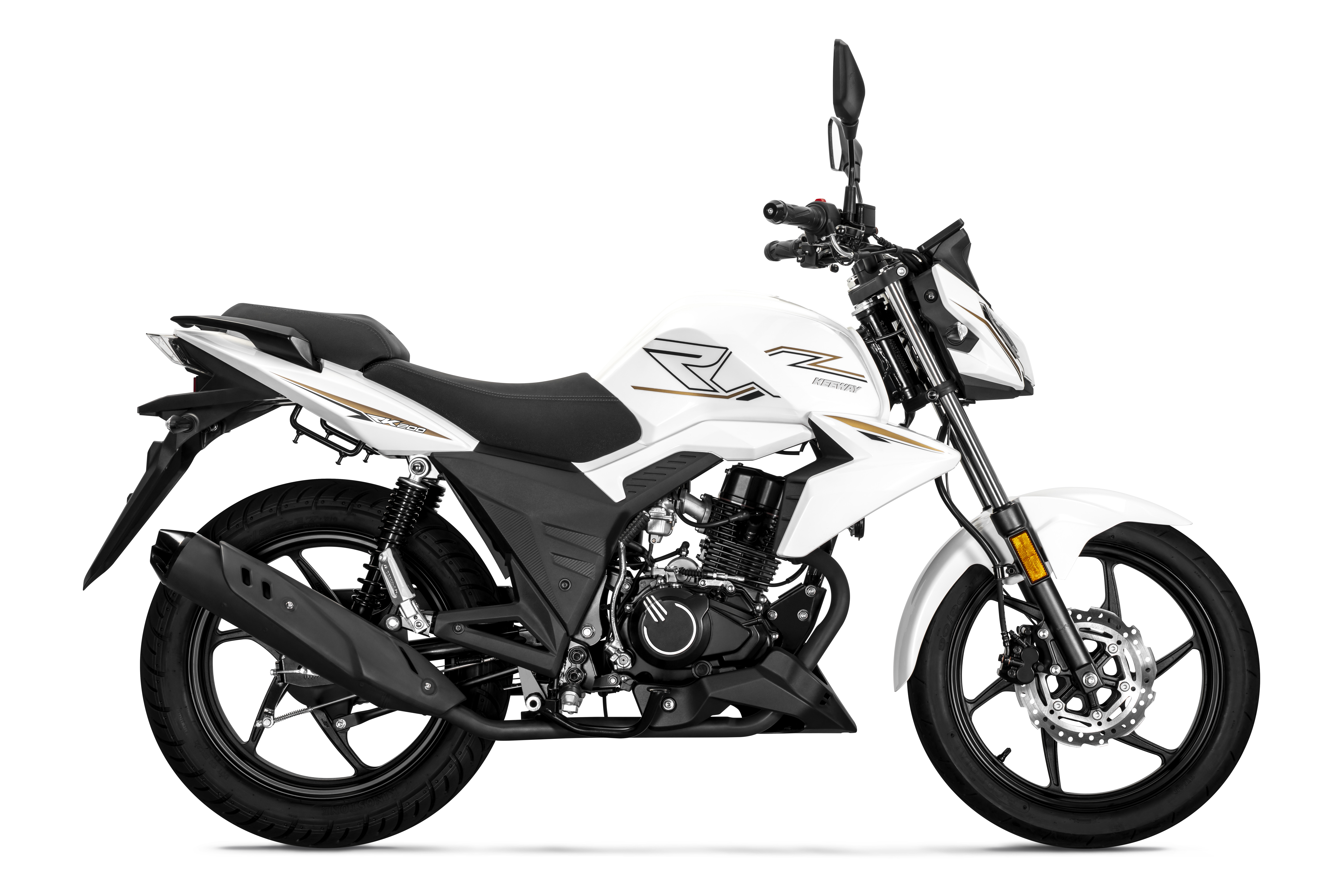

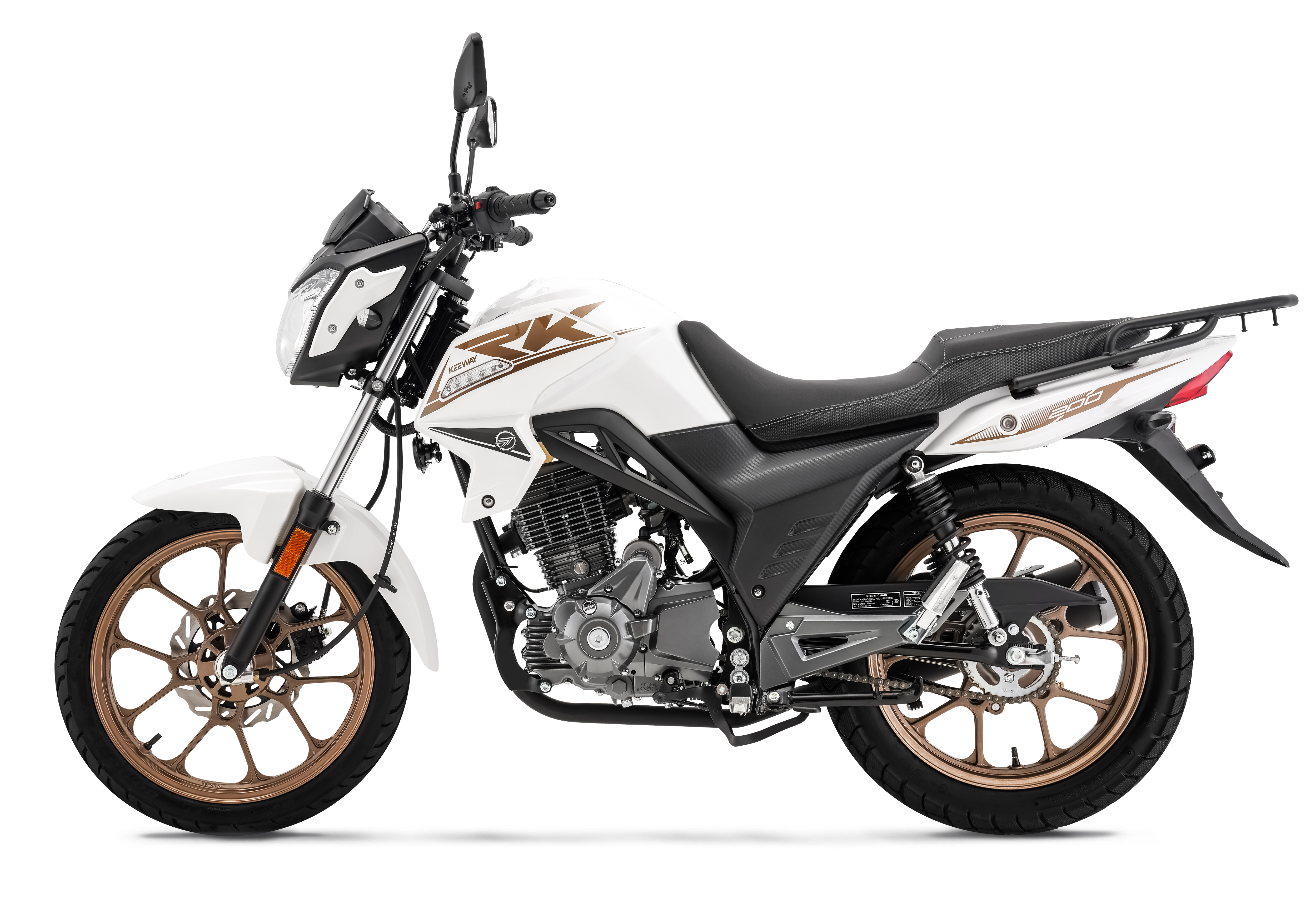

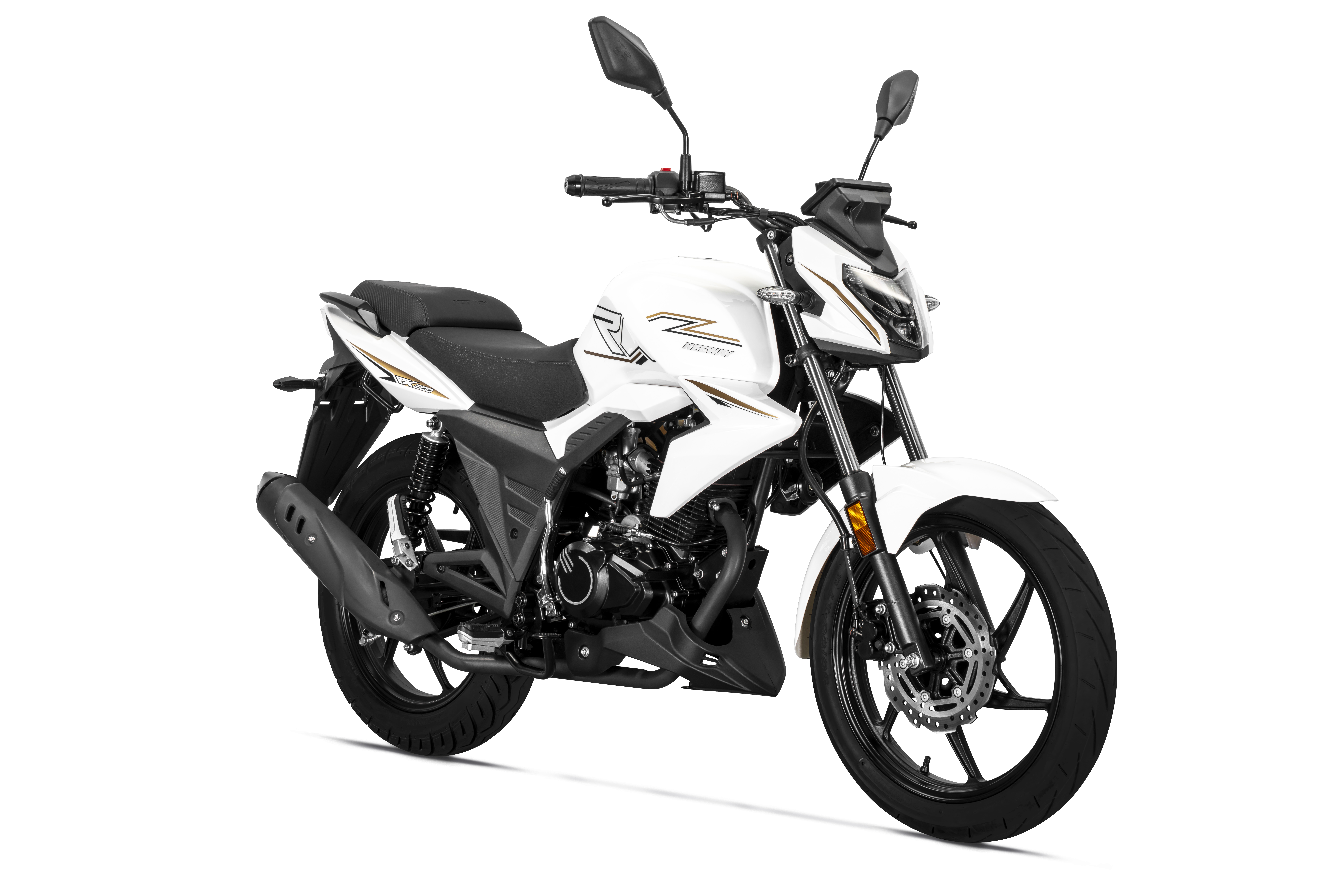

RK 200
RK 200
Interested in this model?
Reach out to us to book a viewing or ask for more details.
Engine
| Engine model | HJ163FML |
|---|---|
| Displacement (cm³) | 199.5 |
| Engine type | 1-cylinder/4-stroke/2-valve |
| Bore x stroke (mm) | 63.5×63 |
| Max.power (kW/rpm) | 9.6/8000 |
| Max.torque (N·m/rpm) | 13.0/6000 |
| Compression ratio | 8.6:1 |
| Fuel system* | Carburetor |
| Valve train | SOHC |
| Ignition | C.D.I. |
| Starter | Electric & Kick |
| Cooling system | Air-cooled |
| Lubrication system | Pressure splash lubrication |
Transmission
| Clutch type | Wet multi-plate |
|---|---|
| Gear shifting type | 5-speed |
| Transmission type | Chain |
| Slipper clutch | No |
Chassis
| Frame type | Diamond |
|---|---|
| Handlebar type | Integrated steel tube |
| Front suspension* | Telescopic forks, unadjustable |
| Front suspension travel (mm) | 124 |
| Rear suspension* | Dual shock-absorber |
| Rear suspension travel (mm) | 60 |
| Front brake* | Disc，2-piston caliper |
| Front brake diameter (mm) | 203 |
| Rear brake* | Drum |
| Rear brake diameter (mm) | 130 |
| Wheels | Aluminum alloy |
| Front tyre* | 80/90-17 |
| Rear tyre* | 120/80-17 |
| Rear swing arm type | Double-sided steel |
Dimentions & weights
| Overall length (mm) | 2025 |
|---|---|
| Overall width (mm) | 775 |
| Overall height (mm) | 1095 |
| Wheelbase (mm) | 1265 |
| Ground clearance (mm) | 170 |
| Seat height (mm) | 765 |
| Fuel capacity (L) | 14 |
| Curb Weight (kg） | 122 |
| Max.loadage (kg) | 180 |
Active/Passive safety features
| ABS* | No |
|---|---|
| CBS | No |
| ABS off function | No |
| Cornering anti-lock braking system (ABS PRO/ABS EVO） | No |
| Tire pressure monitoring system (TPMS) | No |
| Traction control system | No |
| Steering damper | No |
Assistive/Control configurations
| Mode selection | No |
|---|---|
| Throttle configuration | Single cable throttle control |
| Quick shift system (QSS) | No |
| Electronic suspension (ESC) | No |
| Cruise control system (CCS) | No |
| Hydraulic clutch | No |
| Stop-Start system (SSS) | No |
Multimedia & comfort features
| Dashboard type | Mechanical pointer |
|---|---|
| Intelligent device connecting (Bluetooth/Wi-Fi, etc.) | No |
| Navigation screen mirroring | No |
| Gear indicator | Yes |
| USB charging port | Yes |
| Keyless start system | No |
| Heated grips | No |
| Heated seat | No |
| Handle switch with illumination | No |
| T-BOX | No |
| Windshield | No |
Lighting configuration
| Headlight | LED/Incandescent lamp |
|---|---|
| Taillight | Incandescent lamp |
| Turn signal | LED/Incandescent lamp |
| Hazard light | Yes |
| Automatic headlight | No |
Other specifications
| Maximum speed (km/h) | 105 |
|---|---|
| Battery | 12V, 7Ah |
