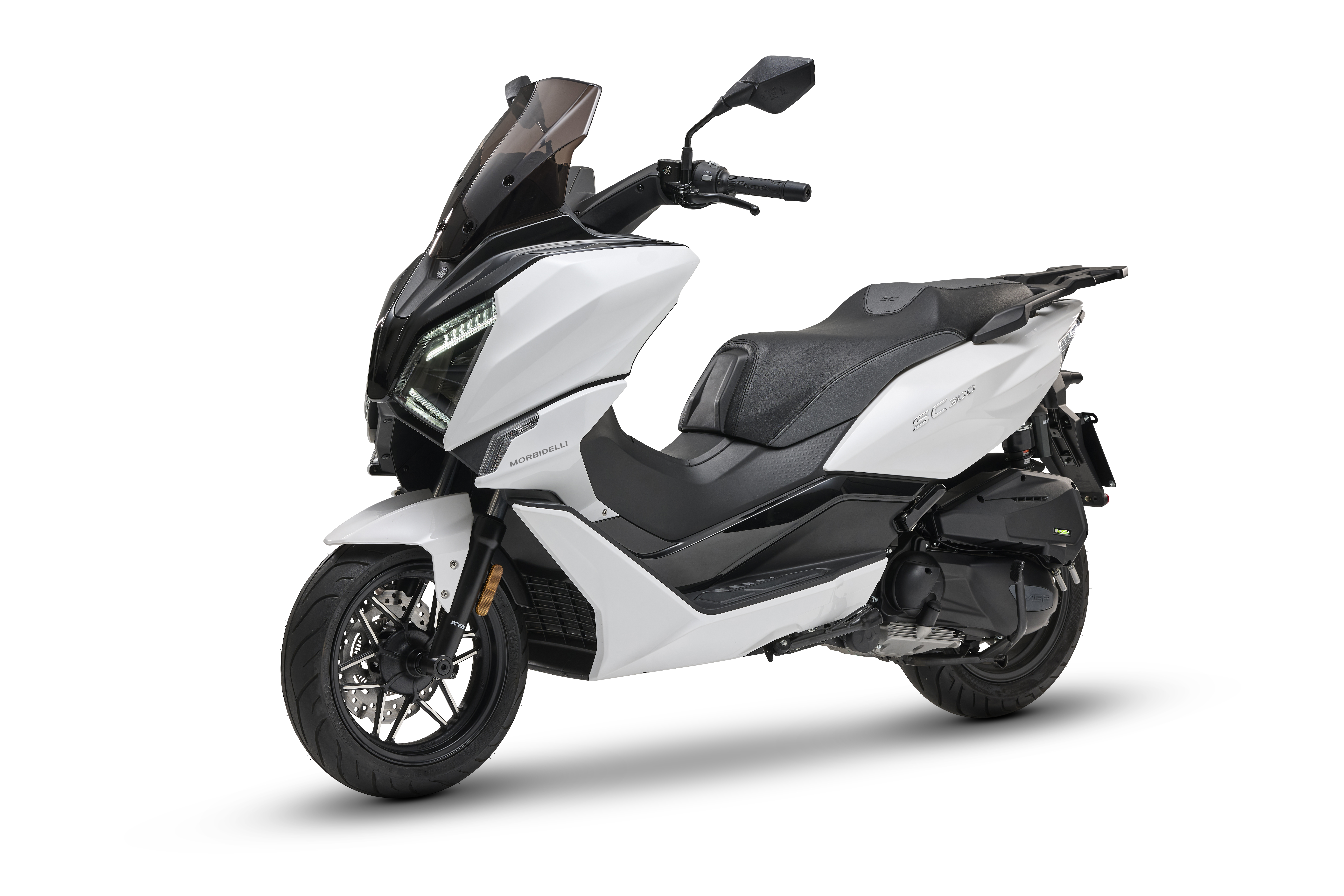

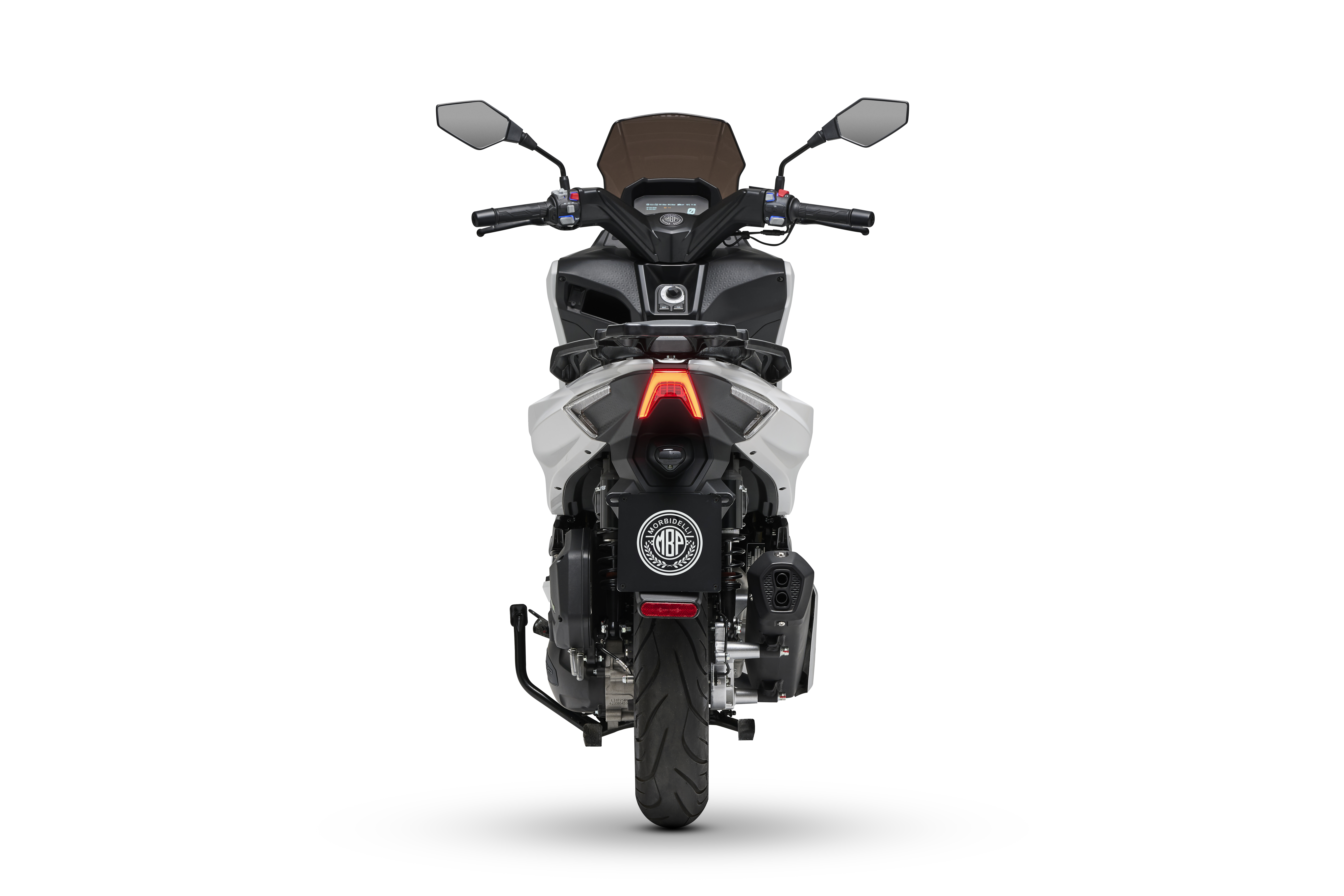

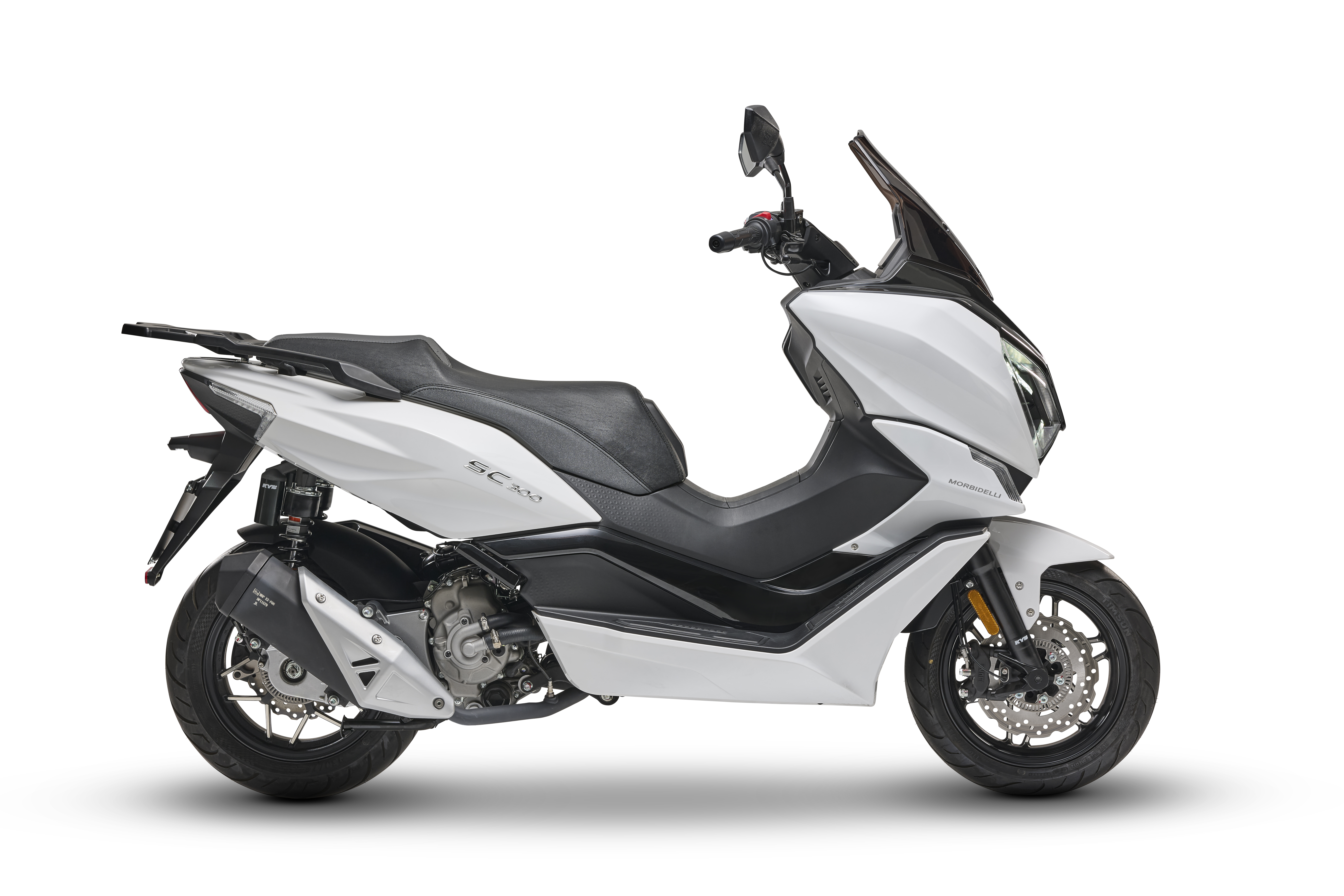

SC300
SC300
Interested in this model?
Reach out to us to book a viewing or ask for more details.
Engine
| Displacement (cm³) | 278 |
|---|---|
| Engine type | 1-cylinder/4-stroke/4-valve |
| Bore x stroke (mm) | 75x63 |
| Max.power (kW/rpm) | 19.0/8250 |
| Max.torque (N·m/rpm) | 24.5/7000 |
| Compression ratio | 11.0:1 |
| Fuel system* | EFI |
| Valve train | SOHC |
| Ignition | T.C.I. |
| Starter | Electric |
| Cooling system | Liquid-cooled |
| Lubrication system | Pressure splash lubrication |
Transmission
| Clutch type | Automatic |
|---|---|
| Gear shifting type | CVT |
| Transmission type | V-Belt |
Chassis
| Frame type | Centerbone scooter |
|---|---|
| Handlebar type | Plastic covered integrated |
| Front suspension* | Telescopic forks, unadjustable，KYB |
| Front suspension travel (mm) | 90 |
| Rear suspension* | Dual shock-absorber, 7-stage adjustable preload，KYB |
| Rear suspension travel (mm) | 65 |
| Front brake* | Disc, 4-piston caliper with ABS，J.Juan |
| Front brake diameter (mm) | 240 |
| Rear brake* | Disc, 2-piston caliper，J.Juan |
| Rear brake diameter (mm) | 220 |
| Wheels | Aluminum alloy |
| Front tyre* | 110/70-13 |
| Rear tyre* | 130/70-13 |
| Rear swing arm type | No |
Dimentions & weights
| Overall length (mm) | 1930/1970 |
|---|---|
| Overall width (mm) | 810 |
| Overall height (mm) | 1260 |
| Wheelbase (mm) | 1400 |
| Ground clearance (mm) | 125 |
| Seat height (mm) | 790 |
| Fuel capacity (L) | 11.5 |
| Curb Weight (kg） | 164 |
| Max.loadage (kg) | 160 |
Active/Passive safety features
| ABS* | Yes |
|---|---|
| CBS | No |
| ABS off function | No |
| Cornering ABS | No |
| Tire pressure monitoring system (TPMS) | Yes |
| Traction control system | Yes |
| Steering damper | No |
Assistive/Control configurations
| Mode selection | No |
|---|---|
| Throttle configuration | Dual cable throttle control |
| Quick shift system (QSS) | No |
| Electronic suspension (ESC) | No |
| Cruise control system (CCS) | No |
| Hydraulic clutch | No |
| Stop-Start system (SSS) | No |
Multimedia & comfort features
| Dashboard type | TFT， 5 inch or LCD |
|---|---|
| Intelligent device connecting (Bluetooth/Wi-Fi, etc.) | Options |
| Navigation screen mirroring | Options |
| Gear indicator | No |
| USB charging port | Yes |
| Keyless start system | Yes |
| Heated grips | Yes |
| Heated seat | No |
| Handle switch with illumination | Yes |
| T-BOX | Options |
| Windshield | Unadjustable |
Lighting configuration
| Headlight | LED |
|---|---|
| Taillight | LED |
| Turn signal | LED |
| Hazard light | Yes |
| Automatic lighting system | No |
Other specifications
| Maximum speed (km/h) | 120 |
|---|---|
| Battery | 12V, 10Ah |
