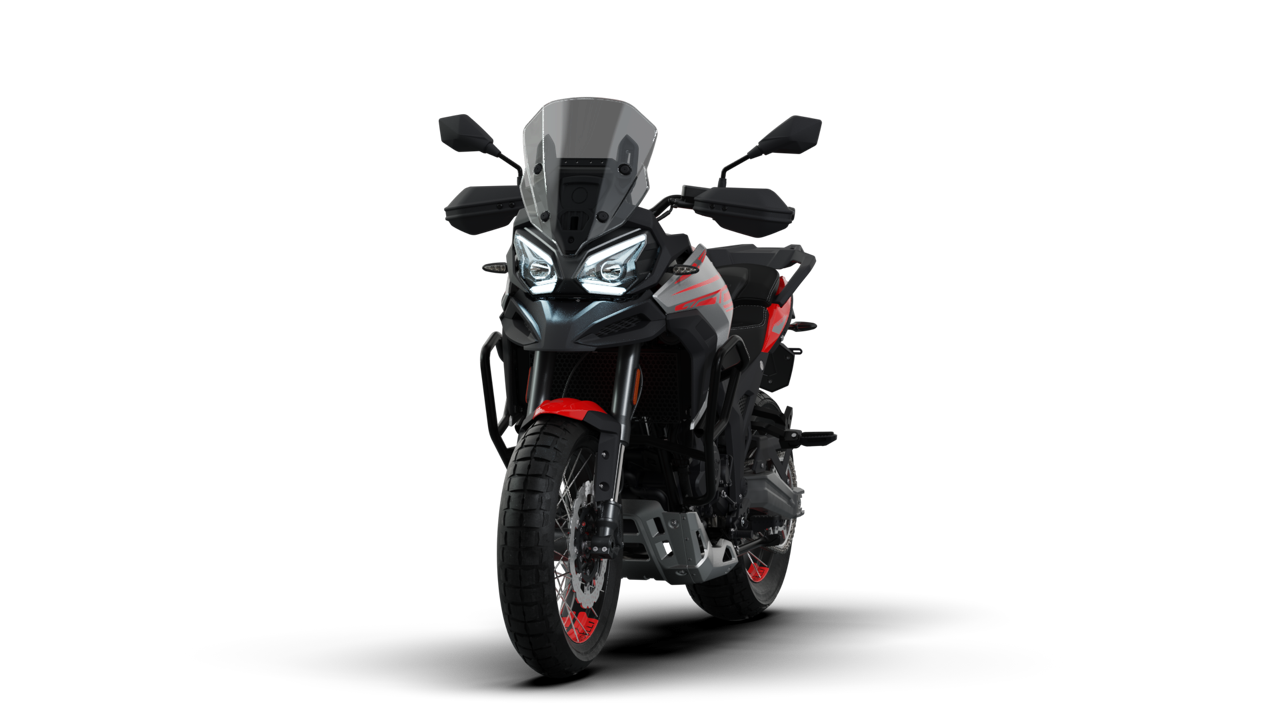

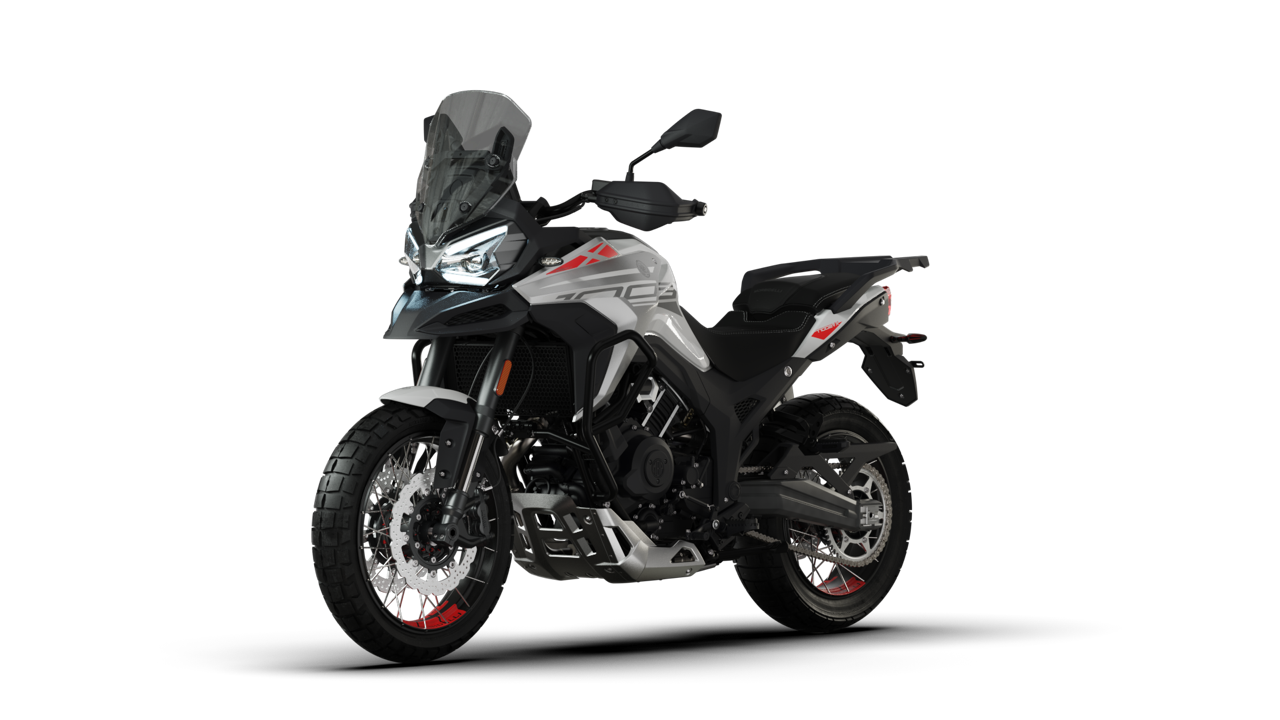

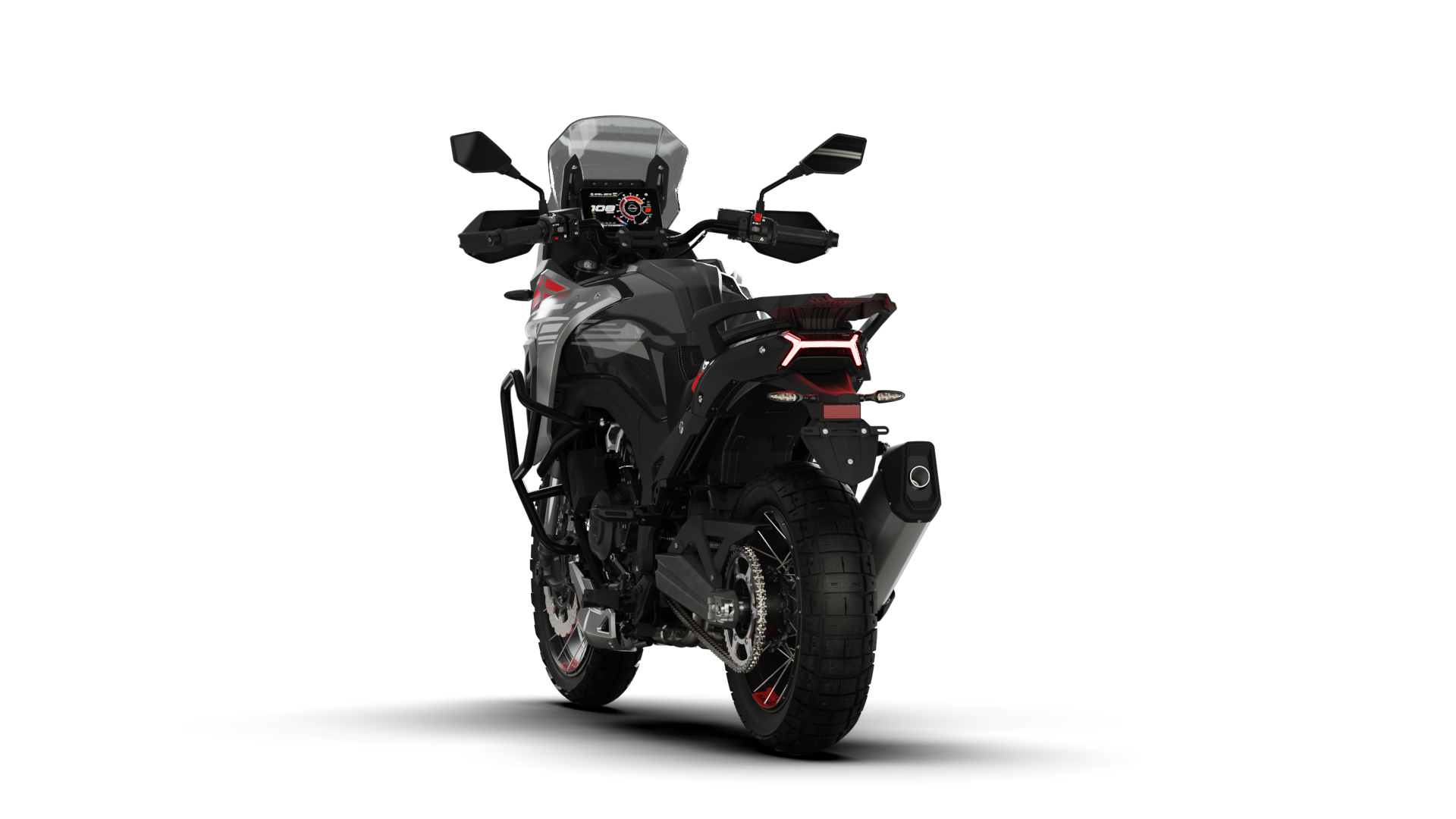

T1002VX
T1002VX
Interested in this model?
Reach out to us to book a viewing or ask for more details.
Engine
| Displacement (cm³) | 997 |
|---|---|
| Engine type | V-2-cylinder/4-stroke/8-valve |
| Bore x stroke (mm) | 92×75 |
| Max.power (kW/rpm) | 65/7500 |
| Max.torque (N·m/rpm) | 89/5250 |
| Compression ratio | 10.3:1 |
| Fuel system* | EFI, Bosch |
| Valve train | SOHC |
| Ignition | T.C.I. |
| Starter | Electric |
| Cooling system | Liquid-cooled |
| Lubrication system | Pressure splash lubrication |
Transmission
| Clutch type | Slipper clutch |
|---|---|
| Gear shifting type | 6-speed |
| Transmission type | Chain |
Chassis
| Frame type | Double-cradle |
|---|---|
| Handlebar type | Integrated aluminum |
| Front suspension* | 43mm upside-down telescopic forks, KYB |
| Front suspension travel (mm) | 183.8 |
| Rear suspension* | Pro-link Mono shock-absorber, continuously adjustable preload, KYB |
| Rear suspension travel (mm) | 77.4 |
| Front brake* | Dual floating discs, 4-piston caliper, J.Juan |
| Front brake diameter (mm) | 320 |
| Rear brake* | Disc, 1-piston caliper, J.Juan |
| Rear brake diameter (mm) | 260 |
| Wheels | Spokes |
| Front tyre* | 120/70-19, Pirelli |
| Rear tyre* | 170/60-17, Pirelli |
| Rear swing arm type | Double-sided aluminum |
Dimentions & weights
| Overall length (mm) | 2313 |
|---|---|
| Overall width (mm) | 931 |
| Overall height (mm) | 1475 |
| Wheelbase (mm) | 1581 |
| Ground clearance (mm) | 190 |
| Seat height (mm) | 820 |
| Fuel capacity (L) | 20 |
| Curb Weight (kg） | 265 |
| Max.loadage (kg) | 190 |
Active/Passive safety features
| ABS* | Dual-Channel, Bosch |
|---|---|
| CBS | No |
| ABS off function | Yes |
| Cornering ABS | Yes |
| Tire pressure monitoring system (TPMS) | Yes |
| Traction control system | Yes |
| Steering damper | No |
Assistive/Control configurations
| Mode selection | Yes |
|---|---|
| Throttle configuration | Electronic throttle control (ETC) |
| Quick shift system (QSS) | No |
| Electronic suspension (ESC) | No |
| Cruise control system (CCS) | Yes |
| Hydraulic clutch | No |
| Stop-Start system (SSS) | No |
Multimedia & comfort features
| Dashboard type | TFT, 7 inch |
|---|---|
| Intelligent device connecting (Bluetooth/Wi-Fi, etc.) | Yes |
| Navigation screen mirroring | No |
| Gear indicator | Yes |
| USB charging port | Type-A |
| Keyless start system | No |
| Heated grips | Yes |
| Heated seat | Yes |
| Handle switch with illumination | Yes |
| T-BOX | Yes |
| Windshield | Mechanical adjustment |
Lighting configuration
| Headlight | LED |
|---|---|
| Taillight | LED |
| Turn signal | LED |
| Hazard light | Yes |
| Automatic lighting system | No |
Other specifications
| Maximum speed (km/h) | 198 |
|---|---|
| Battery | 12V, 14Ah |
